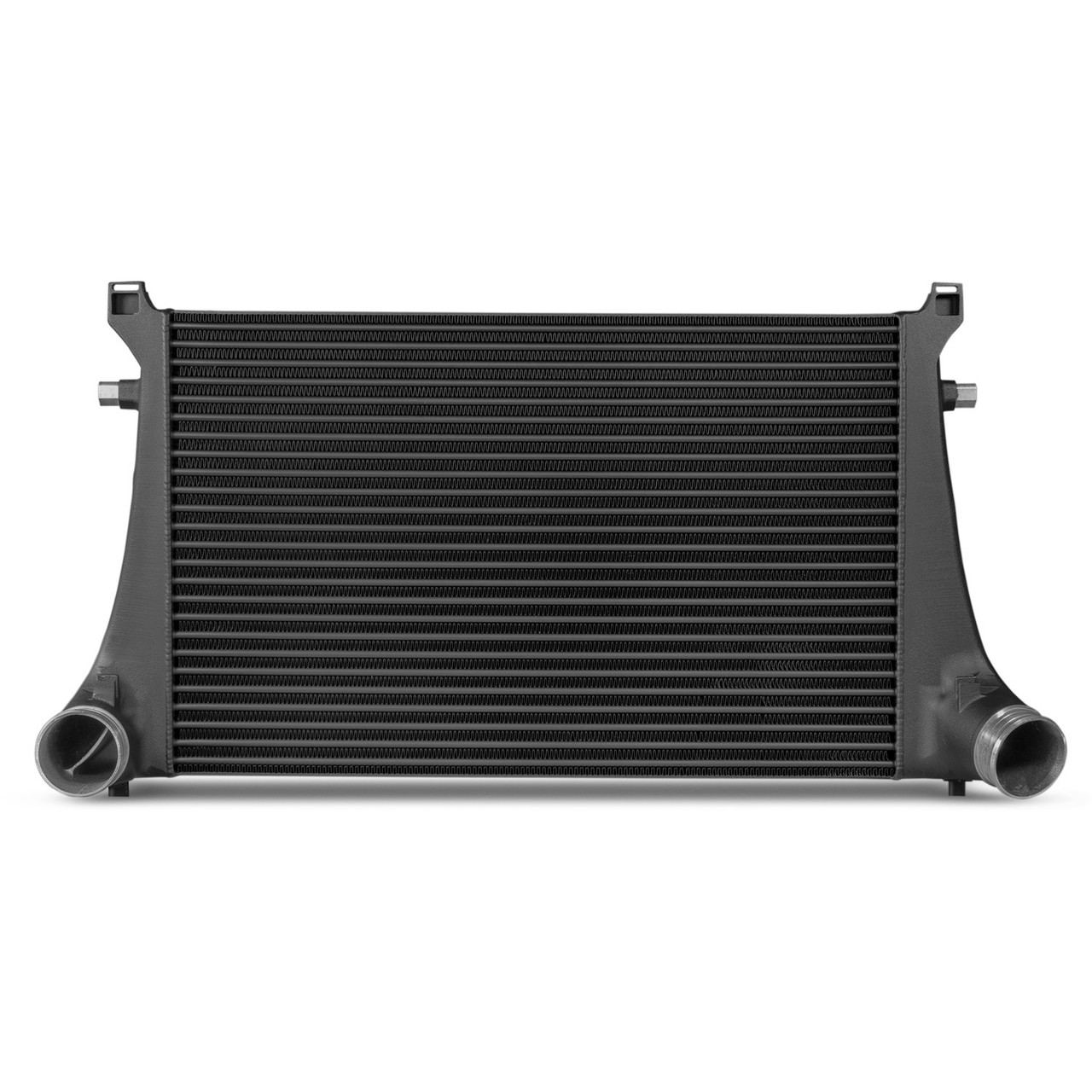

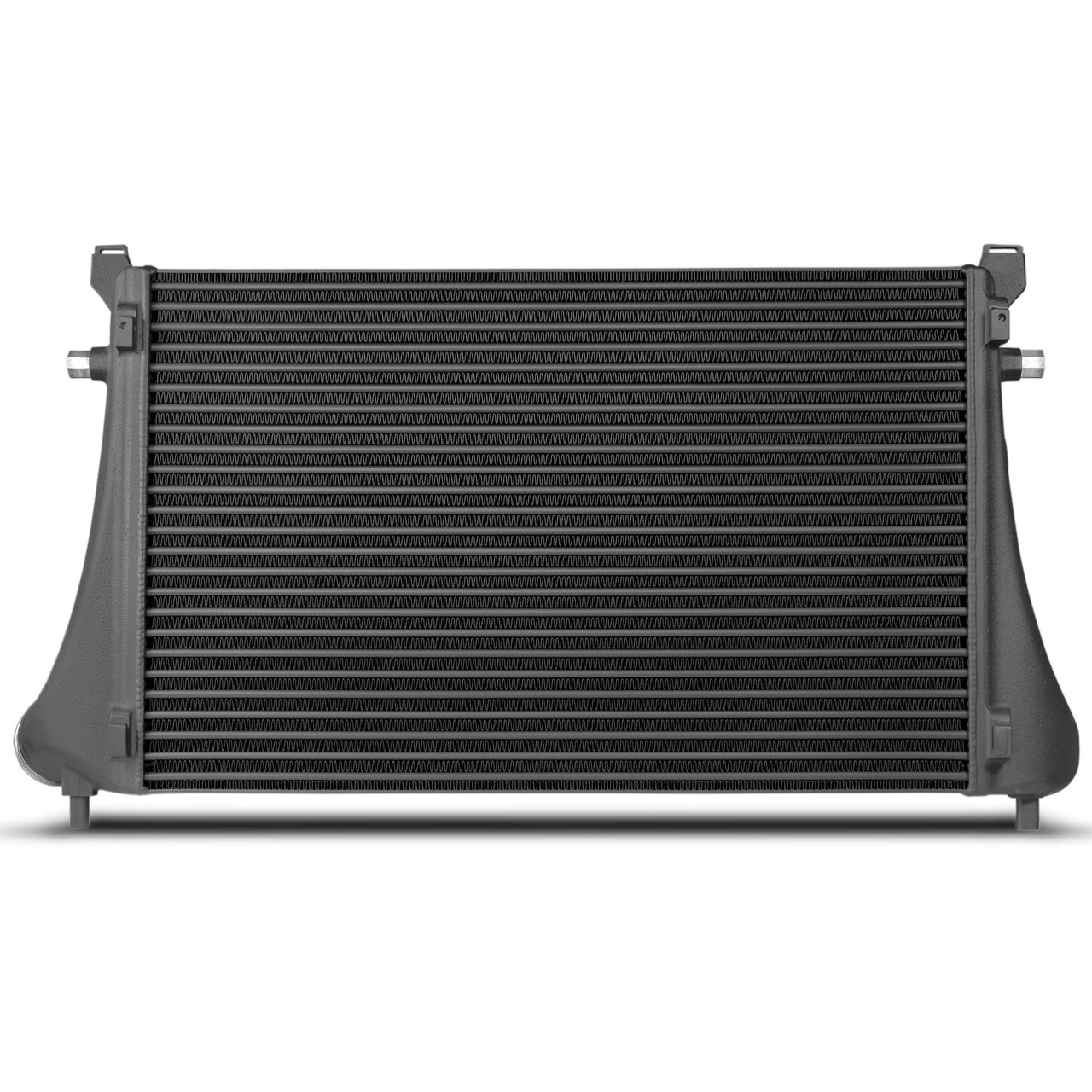

Wagner VAG 1.8-2.0 TSI (EA888 Gen.3) Competition Intercooler Kit

Wagner VAG 1.8-2.0 TSI (EA888 Gen.3) Competition Intercooler Kit

Wagner Tuning Competition Intercooler Kit for VAG 1.8-2.0 TSI & R 17-liter volume & plug & play Experience maximum performance with the Competition Intercooler Kit! We have developed this kit specifically for your VAG 1.8-2.0 TSI and R to take vehicle performance to a whole new level.

Features

• Gigantic charge air volume: With impressive core dimensions of 640 mm x 410 mm x 65 mm, our intercooler offers an expanded volume of 17 liters, a huge increase over the factory 9 liters. That means more air, more power, and a noticeable increase in acceleration.
• Optimised airflow & less back pressure: Our specially developed Competition high-performance core (Tube Fine) ensures optimal airflow. The cast aluminium end boxes were developed in a CAD system and optimised using CFD simulations. An integrated air duct in the end box ensures even filling and significantly minimizes back pressure compared to the stock intercooler.
• Plug & play installation: Replacing the factory intercooler with our kit is straightforward and can be done without any problems. The inlets and outlets have been enlarged to an impressive 70 mm, and the kit includes matching reinforced silicone hoses to handle the increased airflow.
• Maximum quality & durability: Weighing only 9.75 kg, the cooler is lightweight despite its massive size. A high-quality anti-corrosion coating with excellent thermal conductivity protects the material and guarantees long-lasting and optimal cooling performance. Our products are subject to strict quality control procedures to ensure the highest standards.

Technical Details

• Core dimensions: 640 mm x 410 mm x 65 mm
• Intercooler volume: 17 liters (+90% vs. OEM)
• Connection diameter: 70 mm
• Weight: 9.75 kg
• Core type: Competition high-performance core (Tube Fine)
• End tank material: Cast aluminium (CAD/CFD-optimised)
• Part number: 200001048

Fitment

• VW Golf 7+7.5 GTI 2.0 TSI 162-228KW/220-310PS (incl. Facelift- Performance and Clubsport[S], as well as TCR models / engine code CXDA not included in parts certificate)
• VW Golf 7+7.5 R 2.0 TSI 221-228KW/300-310PS (incl. Facelift models)
• VW Arteon 2.0 TSI 140-206KW/190-280PS (only 7 speed DSG)
• VW T-Roc 2.0TSI 4Motion 140KW/190PS (not included in parts certificate)
• VW T-Roc R 4Motion 221KW/300PS (not included in parts certificate)
• Skoda Superb 3V 2.0TSI 162KW/220PS
• Skoda Superb 3V 2.0TSI 206KW/280PS *With further modifications (see notes) on the vehicle, also
• Audi Q2 40TFSI 140KW/190PS* (not included in the parts certificate)
• Audi SQ2 221KW/300PS (not included in the parts certificate)
• Audi A3 8V 1.8TSI 132KW/180PS* (not included)
• Audi A3 8V 2.0TSI 140KW/190PS* (not included)
• Audi S3 8V 2.0TSI 221-228KW/300-310PS*
• Audi TT 8S 2.0TFSI 169KW/230PS*
• Audi TTS 8S 2.0TSI 228KW/310PS*
• Seat Leon 5F Cupra 2.0TSI 195-272KW/265-370PS*(incl. Cupra ST 265-370 & Cupra R)
• Skoda Octavia 5E 1.8TSI 132KW/180PS*(incl. Cupra ST 265-370/265-370PS*)
• Skoda Octavia 5E RS 2.0TSI 162-180KW/220-245PS*(incl. Cupra ST 265-370PS*)

*Due to the additional adjustments, the installation time increases to a total of approx. 5-6hrs.

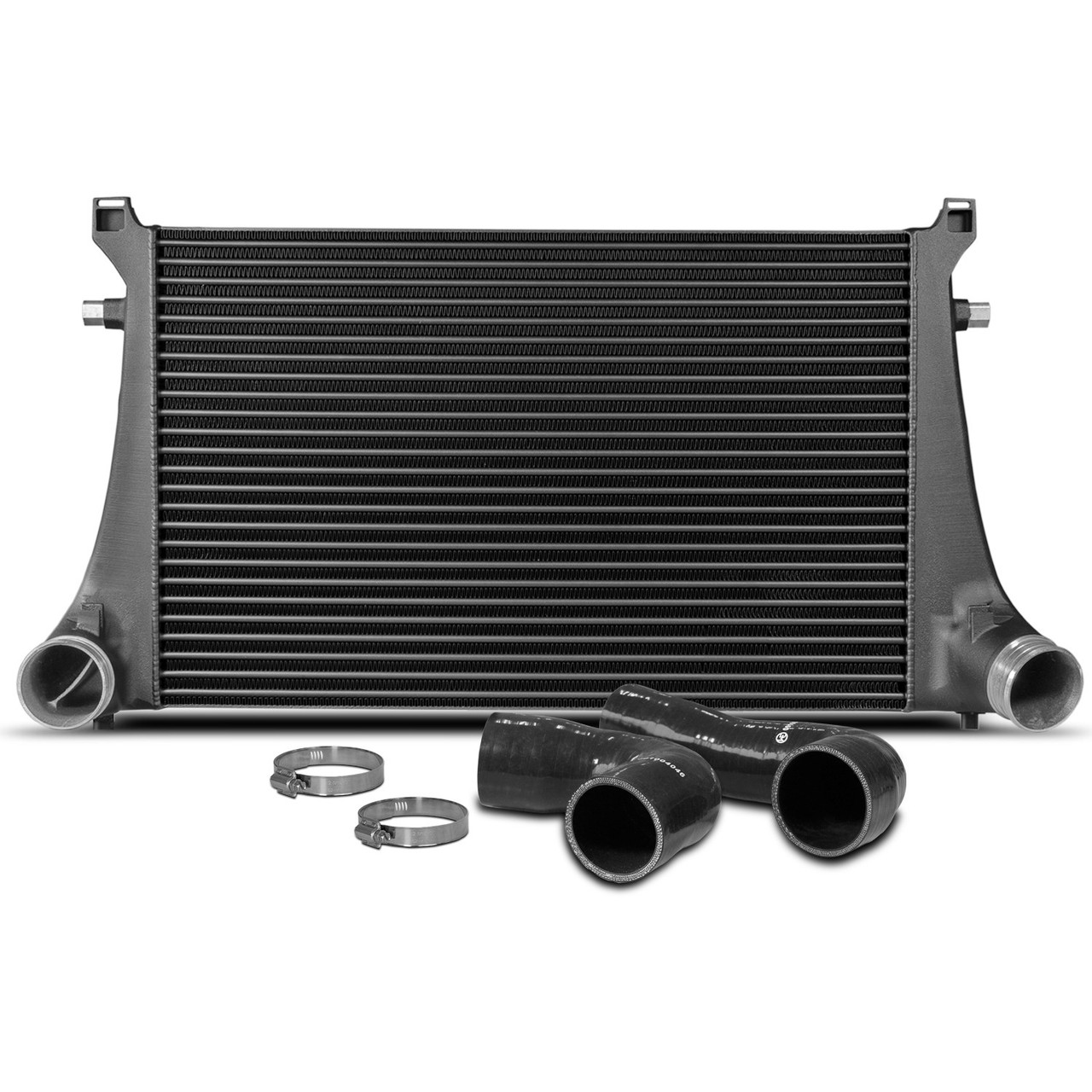

Kit Contents

• 1x Wagner Tuning intercooler
• 2x silicone hoses
• 2x hose clamps
• Mounting material
• Installation instructions
