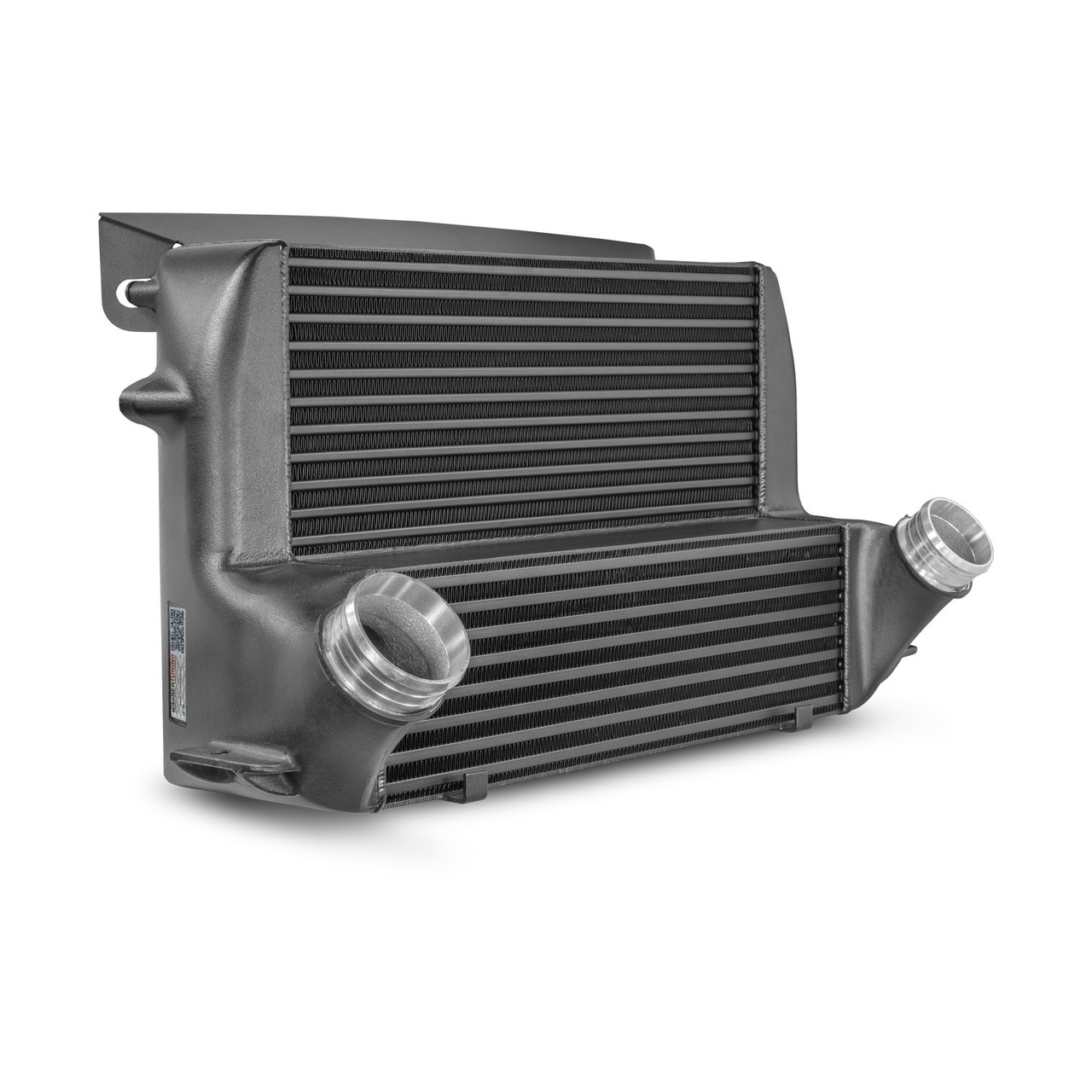

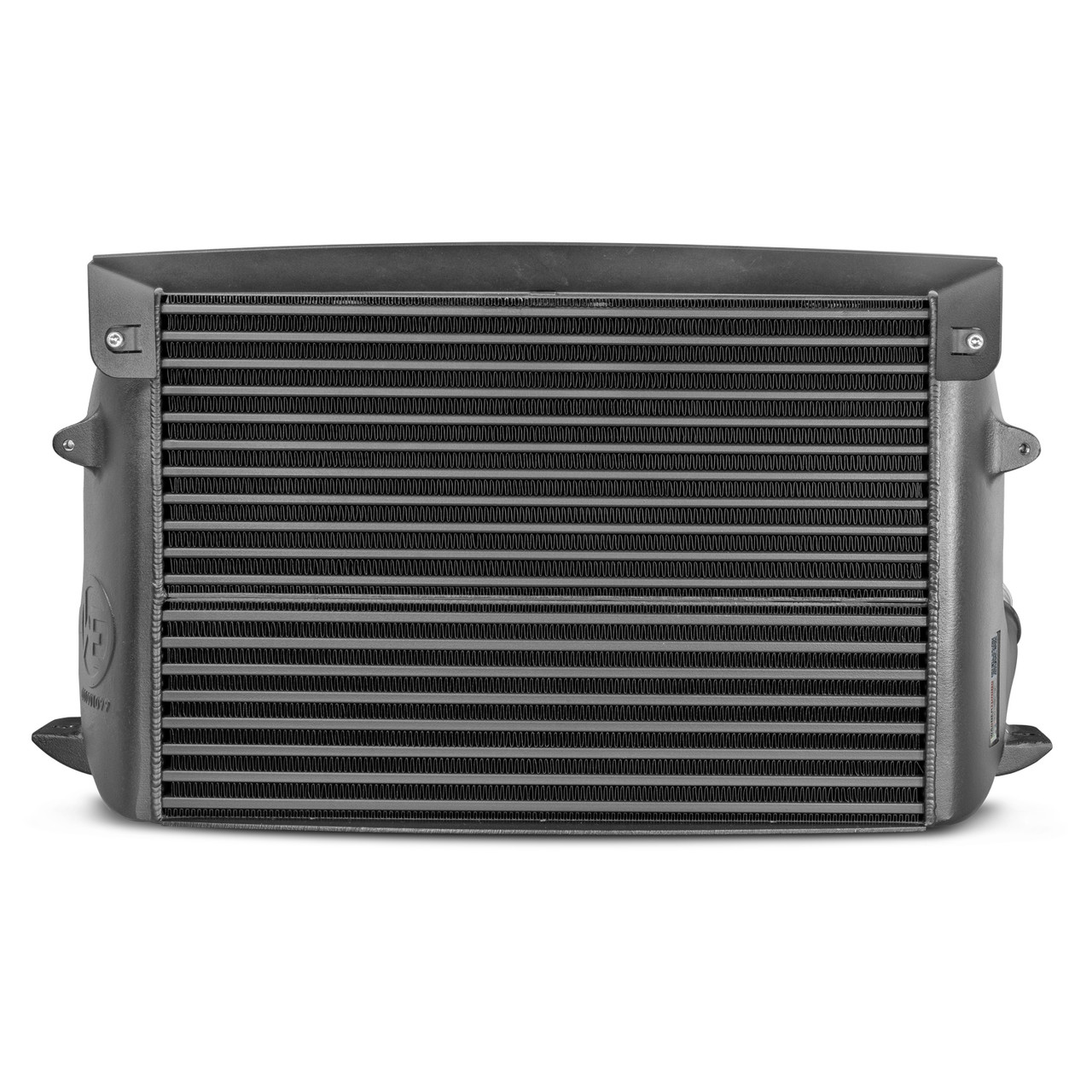

Wagner BMW F20-22 N55 Evo3 Competition Intercooler Kit

Wagner BMW F20-22 N55 Evo3 Competition Intercooler Kit

Wagner Tuning EVO3 intercooler for BMW M135i, M235i & M2 223% more volume & pressure stable Discover a new dimension of performance! With the Wagner Tuning EVO3 Competition intercooler and charge pipe kit, you can take your BMW M135i, M235i, or M2 to a revolutionary level of performance.

This upgrade is the ultimate solution for dramatically improving cooling performance, minimizing back pressure, and achieving a massive increase in power.

Experience the power your BMW deserves.

Features

• Massive increase in power thanks to 223% more volume: With impressive core dimensions of 510 mm x 345 mm x 180 mm (stepped) and a total volume of 23.56 liters, this intercooler offers a sensational 165% larger flow area and a massive 223% more charge air volume compared to the stock cooler.
• Significantly more cool, dense air for your engine, even under extreme loads.
• Optimal airflow & minimal back pressure: At the heart of the system is our high-quality competition high-performance Intercooler core (tube fin), which ensures outstanding cooling performance with minimal back pressure. The cast aluminium end boxes, optimised in the CAD system using CFD flow analysis, maximize the internal airflow. The flow-optimised design not only improves cooling, but also the response of your engine.
• Components for extreme performance: The EVO3 kit was specifically developed for the high demands of tuning stages. The original click connections have been eliminated and the connection diameters have been increased to 65mm at the inlet and 76mm at the outlet. The kit also includes a 76mm aluminium intercooler pipe, which further optimises airflow. The cooler has been tested up to 6 bar and is absolutely pressure-stable.
• Professional installation & highest quality: A special anti-corrosion coating with excellent thermal conductivity properties guarantees durable and optimal cooling. The kit is completely ready to install and includes a modified cross member. Installation is easy, but due to the extreme size, minor adjustments to the radiator support are necessary.

Technical Details

• Net dimensions: 510 mm x 345 mm x 180 mm (stepped)
• Cooling surface: 1759.5 cm (+165% vs. OEM 663 cm)
• Intercooler volume: 23.56 liters (+223% vs. OEM 7.3 L)
• Inlet: 65mm
• Outlet: 76mm
• Weight: 13.8 kg
• Pressure stability: Up to 6 bar
• Part Number: 200001144

Fitment

• BMW F20 / F21 M135i 235-240KW/320-326PS (2011-2016)
• BMW F22 M235i 240 kW/326 hp (2014-2016)
• BMW F87 M2 272 kW/370 hp (2015-2018) (Not suitable for xDrive models.)

Kit Contents

• 1x Wagner intercooler
• 1x 76mm charge air pipe
• 1x External air duct
• 2x Silicone hoses
• 1x Aluminium adapter
• 1x Cross member
• Mounting material
• Installation instructions
