Description

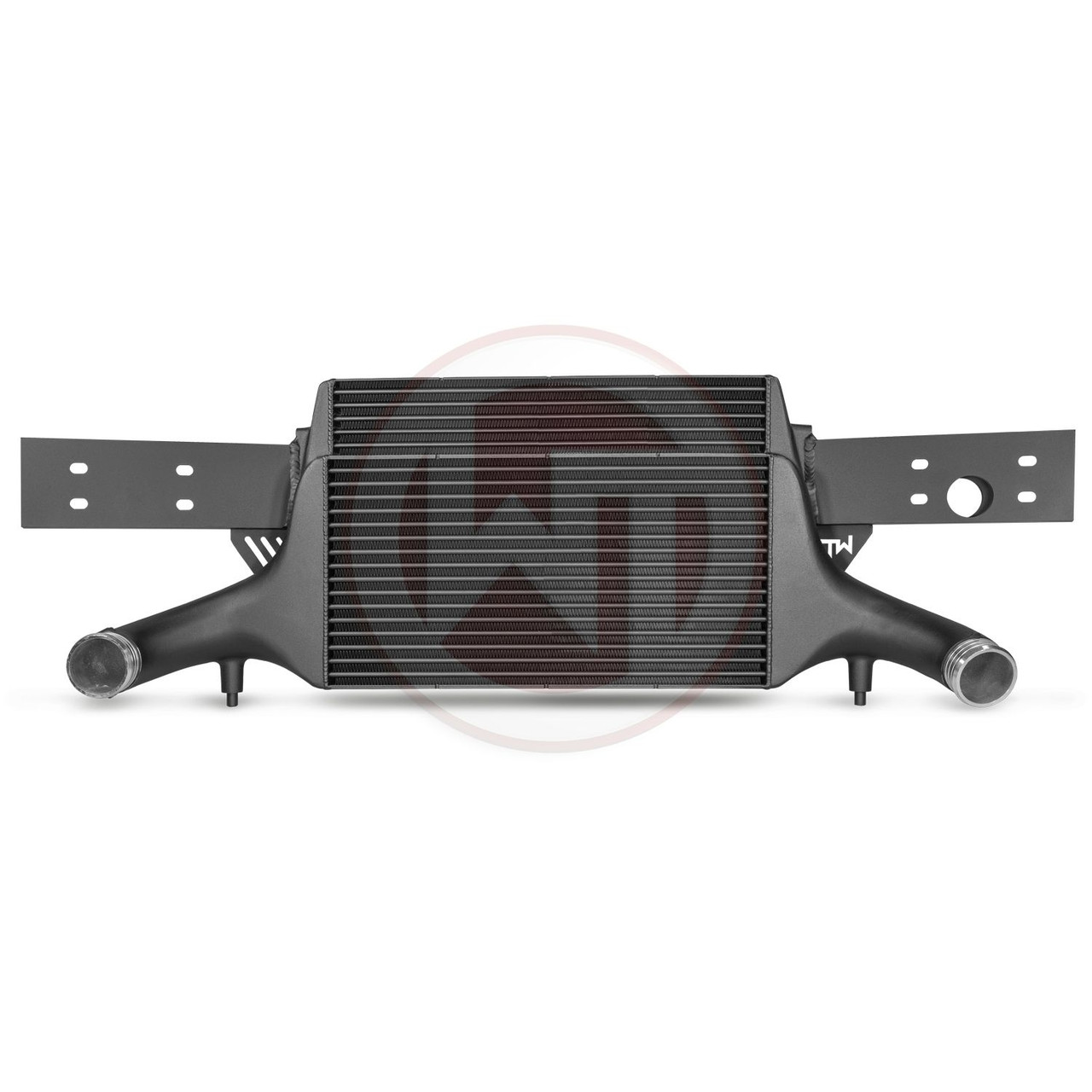

Wagner Audi TTRS 8S EVO3.X 600HP+ Competition Intercooler Kit
Competition Intercooler Kit EVO3 for Audi TTRS 8S now available with TUV certificate and two different intercooler core options.
This Audi RS3 intercooler uses the award winning WAGNERTUNING Competition Intercooler Core, which is made specifically for this application.
This new core option EVO3.X was developed in cooperation with a renowned German Audi tuner and is suitable for higher performance applications 600PS+.
Features
- Improved cooling performance - 84% larger inflow area - 101% more charge air volume - weight 11.7 kg - flow-optimised - less back pressure - original mounting points.
- Increased the intercooler core size and efficiency, as well as improved the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties.
- Constructed of the highest quality Tube and Fin intercooler cores with inside turbulators combined with cast aluminium endtanks optimised by CFD for best possible internal airflow.
- With the help of additional air guides, inside inlet, a uniform filling of the intercooler is provided. The result is excellent cooling properties with minimum pressure drop.
- It is mounted to the original mounting points and is easy to perform (simple adjustments necessasy - check installation instruction).
- Optimum cooling of the charged air with a clear increase in performance!
Technical Specifications
- OEM intercooler: Cooling surface 1024cm(158,7Inch) Charge-air-volume 8.2L (500.4")
- Wagner Tuning EVO3 Competition: Cooling surface 1890cm (293Inch) Charge-air-volume 16.5L (1006.9")
- Core dimensions: (515mm x 367mm x 95mm = 16.500cm) and thus offers a 84% larger cooling surface and 101% more charge air volume compared to the original intercooler.
- Inlet and Outlet: 68mm
- Weight: 11.7kg
Fitment
- Audi TTRS 8S (Bj. 2016-2023)
Kit Contents
- 1x Wagner intercooler including crossmember
- Mounting material
- Installation instruction
- Certification (*only for Non-OPF cars)
