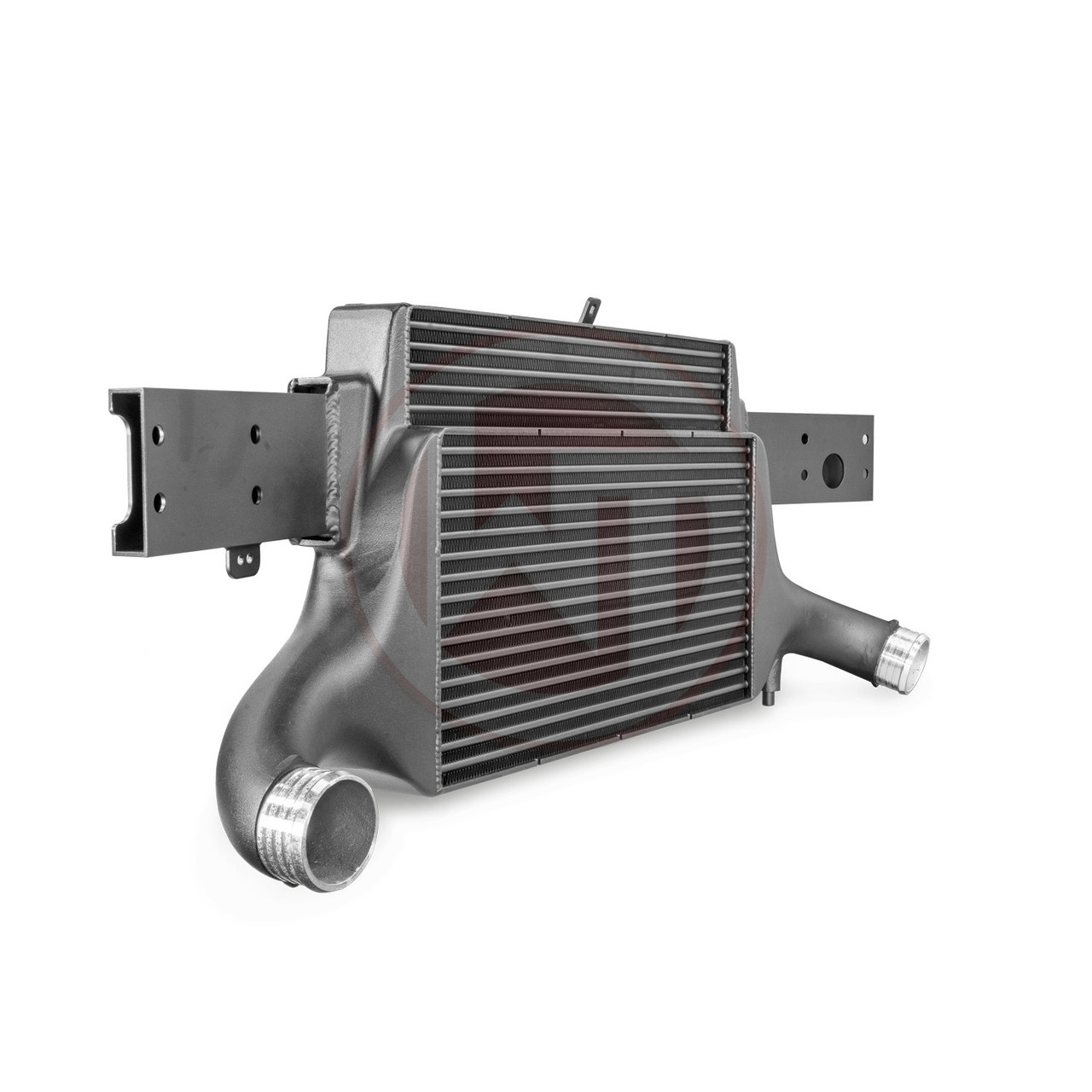

Wagner Audi RS3 8V EVO3.X 600HP+ Competition Intercooler Kit

Wagner Audi RS3 8V EVO3.X 600HP+ Competition Intercooler Kit

COMPETITION INTERCOOLER EVO3 AUDI RS3 8V

The new core option EVO3.X was developed in cooperation with a renowned German Audi tuner and is suitable for higher performance applications 600PS+.

Features

• Only the internal core design has been further optimised for the high power applications and guarantees optimal air flow and excellent cooling performance.
• Our engineers have increased the intercooler core size and efficiency, as well as improved the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties.
• This Audi RS3 intercooler uses our award winning WAGNERTUNING Competition Intercooler Core, which is made specifically for this application.
• Constructed of the highest quality TUBE and FIN intercooler cores with inside turbulators combined with cast aluminium endtanks optimised by CFD for best possible internal airflow.
• With the help of additional air guides, inside inlet, a uniform filling of the intercooler is provided.
• The result is excellent cooling properties with minimum pressure drop.
• So this kit is just the right thing for racing.
• The intercooler and the crossmember form a stable unit.
• It is mounted to the original mounting points and is easy to perform (1:1 exchange).
• Optimum cooling of the charged air with a clear increase in performance!

Technical Specifications

• Wagner Tuning EVO3 Competition: cooling surface 1890cm (293") charge-air-volume 16.5L (1006.9")
• OEM intercooler: cooling surface 1024cm (158.7Inch) charge-air-volume 8.2L (500.4")
• Inlet and Outlet: 68mm (2.67")
• Core Dimensions: (515mm x 367mm x 95mm = 16.5L/14.45Inch x 3.74Inch = 1006.9Inch) and this offers a 84% larger cooling surface and 101% more charge air volume compared to the original intercooler.

Fitment

• Audi RS3 8V Sportback
• Audi RS3 8V Sedan

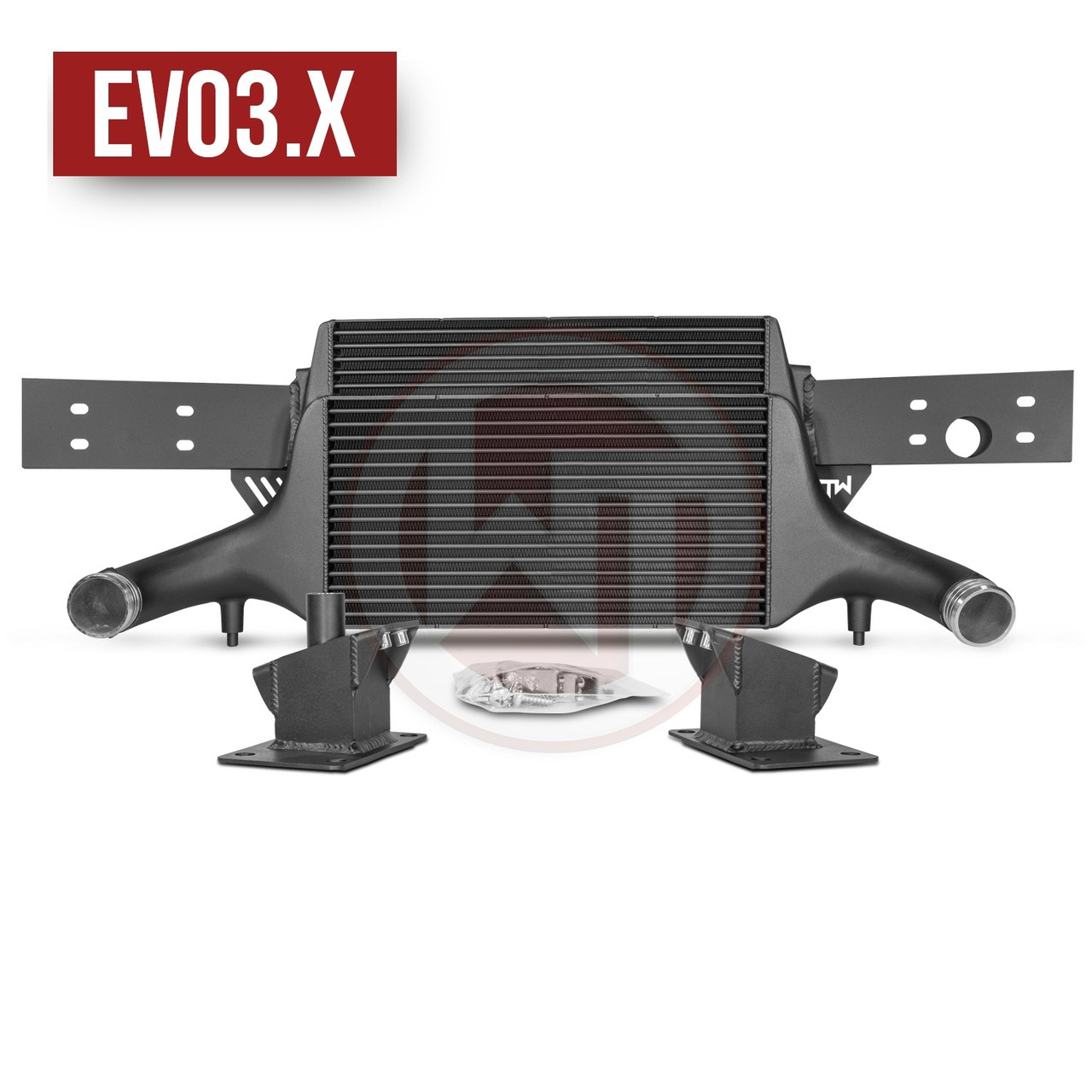

Kit Contents

• 1x Wagner intercooler including crossmember
• Mounting material
• Installation instruction

Notes

• ACC equiped cars my require recalibration of the ACC Sensor
