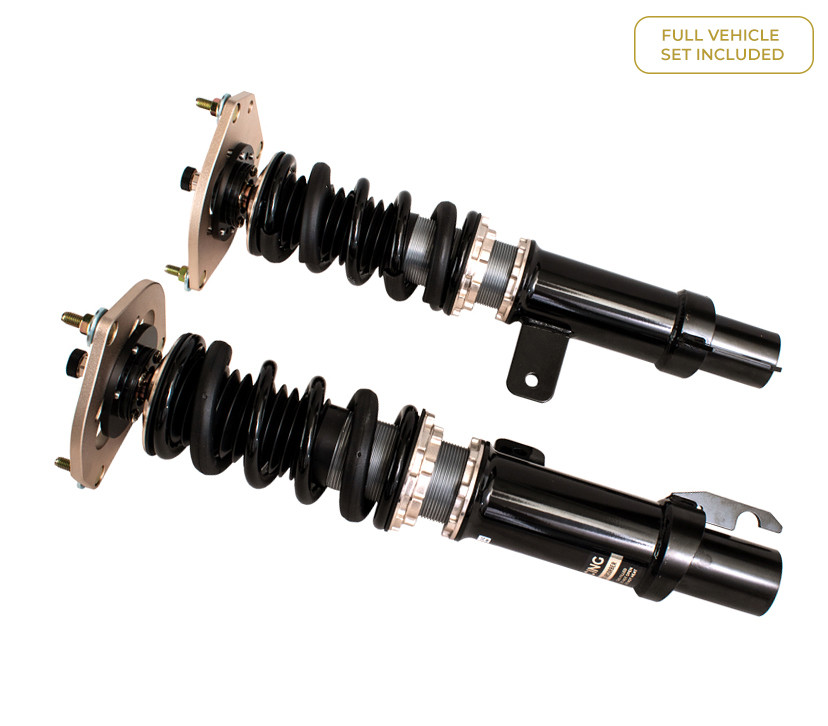

VW TIGUAN FWD AD/BW (16-23) BC Racing DS Series Coilovers | 6.5/6kg.mm
BC Racing DS Series Coilovers deliver precision suspension performance for the VW TIGUAN FWD AD/BW (16-23), engineered with a 6.5/6kg.mm spring rate to provide responsive handling and adjustable ride height for both road and track applications. These lightweight coilover units offer independent front and rear tuning capabilities, allowing drivers to fine-tune their suspension geometry and damping characteristics to suit their driving style and conditions. Built with BC Racing's renowned quality construction, the DS Series represents a comprehensive suspension solution for Tiguan owners seeking professional-grade performance upgrades.
BC Racing DS Series Coilovers
The BC Racing DS Coilover system is built with digressive valving, offering the same great benefits of the BR Series and is considered a perfect choice for those looking for track-biased coilovers. The digressive piston design produces a non-linear damping curve — allowing higher low-speed damping to control body roll through cornering, acceleration and braking, while providing reduced high-speed damping to allow the wheel to travel when running kerbs, preventing the impact from transmitting fully into the shell and retaining car balance.
Key Features
- Digressive piston and damping curve
- Satin chrome finished shock body
- 30 clicks of simultaneous rebound and compression adjustment
- Ride height adjustment separate to spring preload
- Monotube damper design
- Pillowball top mounts (depending on model)
- Bearing mounted upper spring platform
- Camber adjustable top mounts (depending on model)
- Tapered bottom mount locking collar to prevent collar working loose
- Custom spring rates available
- All spare parts available with low lead times
- Dust boot to protect damper seals
- 1 year manufacturer warranty
Digressive Piston Valving
Unlike a conventional linear piston, the DS digressive design increases damping force at low piston velocities — the range associated with body roll, pitch and dive during driven inputs — while reducing damping force at high piston velocities, such as when a wheel travels over a kerb. This keeps the car stable during cornering loads while allowing impacts to be absorbed without upsetting the chassis balance.
Kit Specifications
- Fitment: VW TIGUAN FWD AD/BW (16-23)
- Spring Rate: 6.5/6kg.mm
- 30-Way Combined Damping Adjustment
- Monotube Damper Design
- Full Ride Height Adjustment (via Bottom Mount)
- Adjustable Spring Platforms for Corner Weighting
- Tapered Bottom Mount Locking Collar
- Custom Spring Rates Available
- All Spare Parts Available
- 1 Year Manufacturer Warranty
Fitment Data
| Make | Volkswagen |
| Model | Tiguan |
| Chassis | VW TIGUAN FWD AD/BW (16-23) |
| Series | DS |
| Spring Rate | 6.5/6kg.mm |
| Part Number | H-36-DS-DA |
