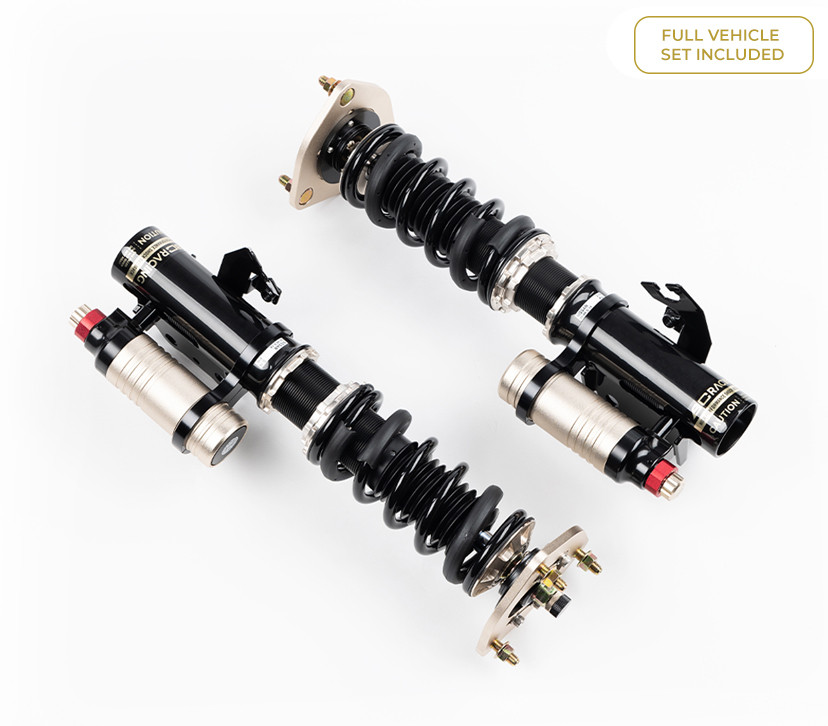

Toyota GR COROLLA AWD E210 (23+) BC Racing ZX Series Coilovers | 5.5/6kg.mm
The BC Racing ZX Series Coilovers for Toyota GR COROLLA AWD E210 (23+) deliver precision handling and adjustable suspension geometry with a 5.5/6kg.mm spring rate configuration tailored for responsive performance driving. These high-quality coilovers offer independent front and rear tuning capabilities, allowing you to fine-tune your vehicle's stance and ride characteristics to match your driving style and road conditions. BC Racing's ZX Series combines proven engineering with quality construction to provide Toyota GR COROLLA AWD E210 (23+) owners with a dedicated suspension solution for improved cornering, braking stability and overall dynamic control.
BC Racing ZX Series Coilovers
The BC Racing ZX Series is designed specifically for racing and track use. The series features 3-way adjustable damping with 20 clicks of low-speed compression, 12 clicks of high-speed compression and 30 clicks of rebound adjustment. The ZX adopts an upright damper design, allowing the possibility of replacing the upper mount. The added volume provided by the external canister combined with ultra-high viscosity index racing shock fluid means the ZX Series can maintain outstanding performance on track and in drifting competitions for extended periods.
Key Features
- Digressive piston and damping curve
- Ultra-high viscosity index full synthetic shock fluid
- Monotube damper design
- 3-way adjustable damping control
- 30 clicks of rebound adjustment
- 20 clicks of low-speed compression adjustment
- 12 clicks of high-speed compression adjustment
- Dual piston design
- External canister for increased oil volume
- Custom spring rates available
- Fully rebuildable
- 1 year warranty against manufacturer defect
3-Way Damping Adjustment
Independent control of rebound, low-speed compression and high-speed compression allows each circuit to be tuned without affecting the others. Low-speed compression controls body movement under driven loads. High-speed compression controls the response to sharp, abrupt inputs such as kerbs and surface changes. Rebound controls suspension extension after compression — critical for weight transfer management and traction on corner exit.
Kit Specifications
- Fitment: Toyota GR COROLLA AWD E210 (23+)
- Spring Rate: 5.5/6kg.mm
- 3-Way Adjustable Damping — 30 Rebound / 20 Low-Speed Compression / 12 High-Speed Compression
- Monotube Damper Design
- Full Ride Height Adjustment (via Bottom Mount)
- Adjustable Spring Platforms for Corner Weighting
- Tapered Bottom Mount Locking Collar
- Custom Spring Rates Available
- All Spare Parts Available
- 1 Year Manufacturer Warranty
Fitment Data
| Chassis | Toyota GR COROLLA AWD E210 (23+) |
| Series | ZX |
| Spring Rate | 5.5/6kg.mm |
| Part Number | C-190-ZX |
