Description

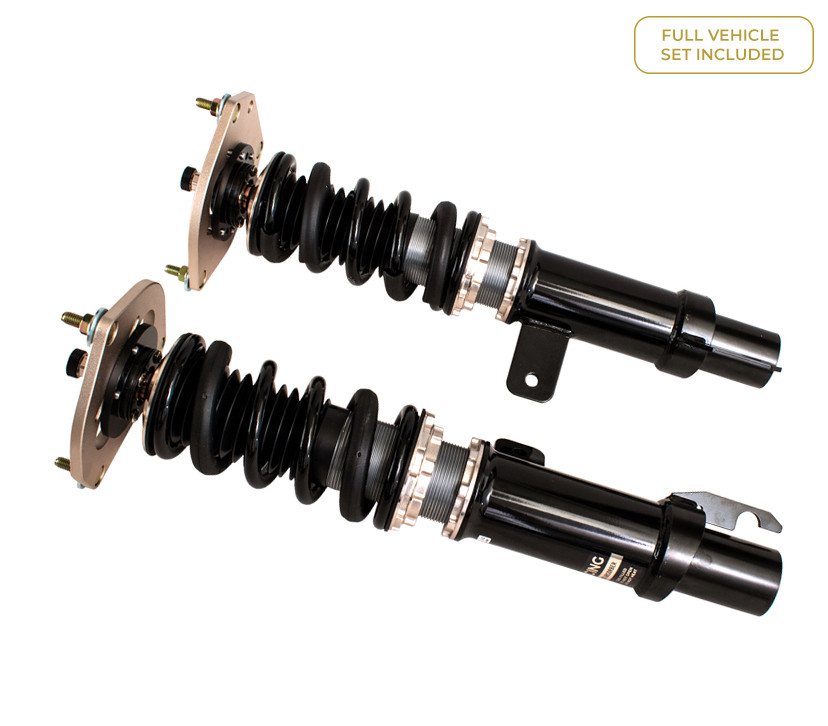

TOYOTA 86 ZN6 (12+) BC Racing DS Series Coilovers | 5/5KG.MM
The BC Racing DS Series Coilovers for TOYOTA 86 ZN6 (12+) deliver precision suspension tuning with a 5/5KG.MM spring rate configuration engineered for dynamic road and track performance. These coilovers combine adjustable damping and ride height control to optimise handling characteristics on your TOYOTA 86 ZN6 (12+). BC Racing's DS Series represents a proven choice for drivers seeking professional-grade suspension upgrades backed by extensive development and real-world testing.
BC Racing DS Series Coilovers
The BC Racing DS Coilover system is built with digressive valving, offering the same great benefits of the BR Series and is considered a perfect choice for those looking for track-biased coilovers. The digressive piston design produces a non-linear damping curve — allowing higher low-speed damping to control body roll through cornering, acceleration and braking, while providing reduced high-speed damping to allow the wheel to travel when running kerbs, preventing the impact from transmitting fully into the shell and retaining car balance.
Key Features
- Digressive piston and damping curve
- Satin chrome finished shock body
- 30 clicks of simultaneous rebound and compression adjustment
- Ride height adjustment separate to spring preload
- Monotube damper design
- Pillowball top mounts (depending on model)
- Bearing mounted upper spring platform
- Camber adjustable top mounts (depending on model)
- Tapered bottom mount locking collar to prevent collar working loose
- Custom spring rates available
- All spare parts available with low lead times
- Dust boot to protect damper seals
- 1 year manufacturer warranty
Digressive Piston Valving
Unlike a conventional linear piston, the DS digressive design increases damping force at low piston velocities — the range associated with body roll, pitch and dive during driven inputs — while reducing damping force at high piston velocities, such as when a wheel travels over a kerb. This keeps the car stable during cornering loads while allowing impacts to be absorbed without upsetting the chassis balance.
Kit Specifications
- Fitment: TOYOTA 86 ZN6 (12+)
- Spring Rate: 5/5KG.MM
- 30-Way Combined Damping Adjustment
- Monotube Damper Design
- Full Ride Height Adjustment (via Bottom Mount)
- Adjustable Spring Platforms for Corner Weighting
- Tapered Bottom Mount Locking Collar
- Custom Spring Rates Available
- All Spare Parts Available
- 1 Year Manufacturer Warranty
Fitment Data
| Make | Scion |
| Model | Fr-S |
| Chassis | TOYOTA 86 ZN6 (12+) |
| Series | DS |
| Spring Rate | 5/5KG.MM |
| Part Number | C-89-DS-DA |
