Description

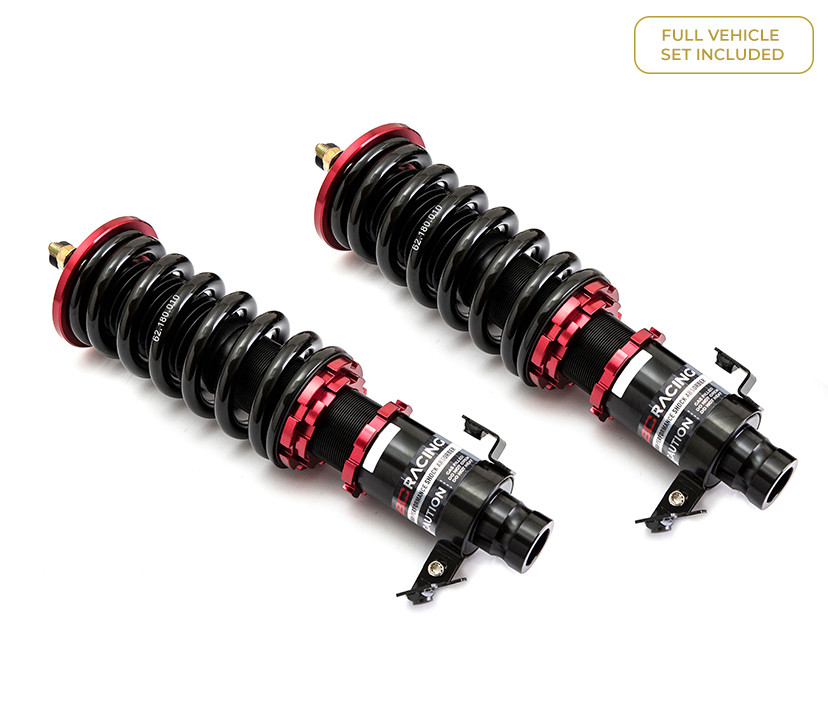

Suzuki Solio MA26S (FWD) (15+) BC Racing V1 Series VN Coilovers | 5/3kg.mm
The BC Racing V1 Series VN coilovers for Suzuki Solio MA26S (FWD) (15+) deliver precision handling and responsive suspension tuning with a 5/3kg.mm spring rate, engineered for drivers seeking dynamic performance without factory compromise. These coilovers feature a streamlined setup without top mounts on both front and rear axles, enabling straightforward installation and maximising suspension geometry adjustments. BC Racing's V1 Series suspension technology provides the foundation for enhanced cornering control and improved ride quality on UK roads.
BC Racing V1 Series Coilovers
The BC Racing V1 Series coilovers use a large 44mm diameter piston in a 50mm diameter damper body to maximise oil capacity. As the damper operates, the oil inside heats up — the viscosity of oil changes with temperature, which can lead to changes in the damping characteristics of the unit. BC Racing use a very high quality oil throughout their range and go a step further by building the V1 with a 50mm diameter body. This increases oil capacity, reduces the peak temperature reached during use, and significantly improves damper performance and consistency as a result.
Key Features
- 30-way adjustable damping
- Monotube damper design
- Ride height adjustment separate to spring preload
- Tapered bottom mount locking collar to prevent collar working loose
- Pillowball top mounts (depending on model)
- Bearing mounted upper spring platform
- Camber adjustable top mounts (depending on model)
- Custom spring rates available
- All spare parts available with low lead times
- Dust boot to protect damper seals
30-Way Damping Adjustment
A single adjuster controls both compression and rebound simultaneously across 30 positions, allowing the driver to set ride stiffness from a comfortable daily setting through to a firmer arrangement for track or spirited road use.
Ride Height Independent of Spring Preload
Ride height is adjusted via the bottom mount, not the spring platform — full damper travel is retained at any ride height. The tapered locking collar prevents the height setting from working loose under vibration.
The VN configuration is supplied without front top mounts — designed to reuse the OEM front top mount — and with aluminium rear top mounts with rubber centres or no rear top mounts depending on the application.
Kit Specifications
- Fitment: Suzuki Solio MA26S (FWD) (15+)
- Spring Rate: 5/3kg.mm
- 30-Way Combined Damping Adjustment
- Front Top Mount: Without Top Mount
- Rear Top Mount: Without Top Mount
- Monotube Damper Design
- Full Ride Height Adjustment (via Bottom Mount)
- Adjustable Spring Platforms for Corner Weighting
- Tapered Bottom Mount Locking Collar
- Custom Spring Rates Available
- All Spare Parts Available
- 1 Year Manufacturer Warranty
Fitment Data
| Make | Suzuki |
| Model | Solio |
| Chassis | MA26S (FWD) (15+) |
| Series | V1 |
| Type | VN |
| Spring Rate | 5/3kg.mm |
| Front Top Mount | Without Top Mount |
| Rear Top Mount | Without Top Mount |
| Part Number | L-28-V1-VN |
