Description

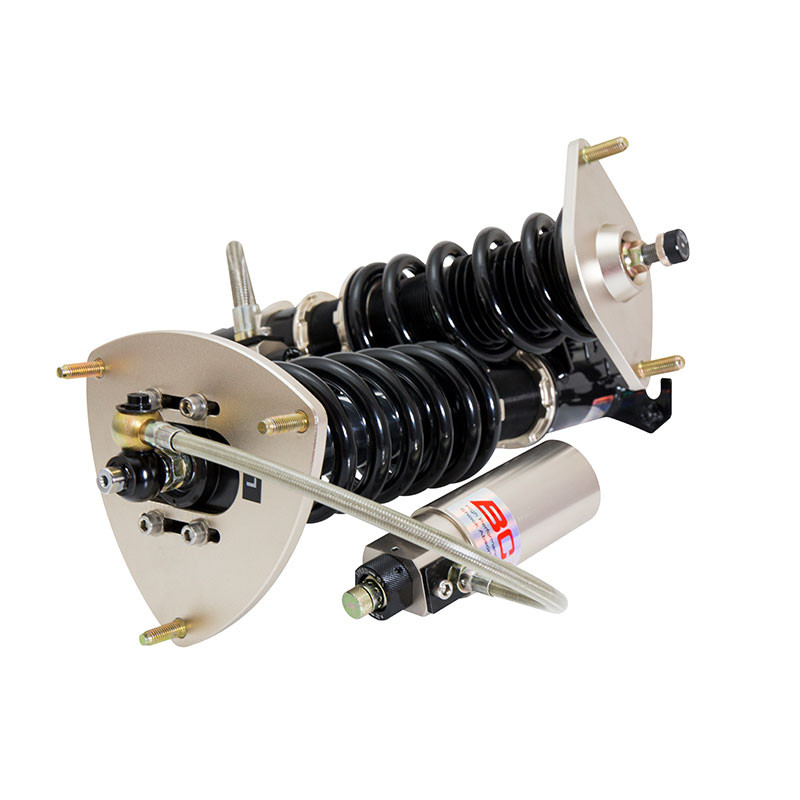

Subaru STI GRB (08-11) BC Racing ZR Series Coilovers | 8/8kg.mm
BC Racing ZR Series Coilovers for the Subaru STI GRB (08-11) deliver precision suspension tuning with a fixed 8/8kg.mm spring rate setup, engineered to enhance handling and cornering performance on road and track. These coilovers provide adjustable ride height and damping characteristics, allowing drivers to fine-tune their vehicle's suspension geometry to their exact driving style and road conditions. The BC Racing ZR Series represents a popular choice for Subaru STI GRB (08-11) owners seeking a balance between daily drivability and motorsport-inspired suspension control.
BC Racing ZR Series Coilovers
BC Racing's ZR Series brings a 3-way adjustable track-ready coilover system to racers from novice to professional at a price not previously seen in the performance suspension market. Each ZR system offers independent low-speed and high-speed compression adjustment and separate rebound adjustment, with full height adjustability independent of both piston travel and spring preload. On MacPherson strut applications, the ZR uses an inverted monotube damper with a Teflon-coated steel braided line from the top of the damper to external reservoirs that can be remotely mounted in the engine bay or boot.
Key Features
- Digressive piston and damping curve
- 3-way adjustable damping controls
- 30 clicks of rebound adjustment
- 20 clicks of low-speed compression adjustment
- 12 clicks of high-speed compression adjustment
- Ride height adjustment separate to spring preload
- Inverted damper design (depending on model)
- Dual piston design (1 in reservoir, 1 in shock)
- Teflon coated steel braided lines for external reservoir
- Tapered bottom mount locking collar to prevent working loose
- Pillowball top mounts
- Custom spring rates available
- All spare parts available with low lead times
- Dust boot to protect damper seals
- 1 year manufacturer warranty
3-Way Independent Adjustment
The ZR offers 30 clicks of rebound, 20 clicks of low-speed compression and 12 clicks of high-speed compression — each circuit tuned independently. Full height adjustability is independent of both piston travel and spring preload — the most flexible setup arrangement in the BC Racing range.
Kit Specifications
- Fitment: Subaru STI GRB (08-11)
- Spring Rate: 8/8kg.mm
- 3-Way Adjustable Damping — 30 Rebound / 20 Low-Speed Compression / 12 High-Speed Compression
- Monotube Damper Design
- Full Ride Height Adjustment (via Bottom Mount)
- Adjustable Spring Platforms for Corner Weighting
- Tapered Bottom Mount Locking Collar
- Custom Spring Rates Available
- All Spare Parts Available
- 1 Year Manufacturer Warranty
Fitment Data
| Make | Subaru |
| Model | Impreza |
| Chassis | Subaru STI GRB (08-11) |
| Series | ZR |
| Spring Rate | 8/8kg.mm |
| Part Number | F-10-ZR |
