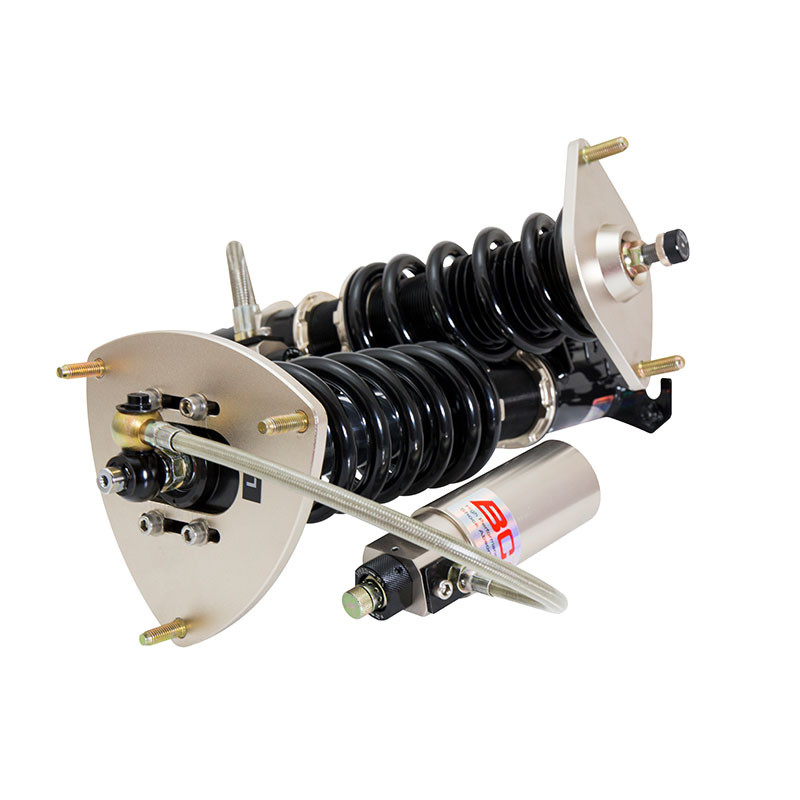

Scion FR-S ZN6 (12+) BC Racing ZR Series Coilovers | 6/4kg.mm
BC Racing ZR Series Coilovers for the Scion FR-S ZN6 (12+) deliver precision suspension tuning with a 6/4kg.mm spring rate configuration, engineered to enhance both road handling and track performance. These premium Japanese coilovers feature adjustable damping and ride height, making them an ideal choice for enthusiasts seeking responsive cornering and improved chassis dynamics. Whether for daily driving or competitive motorsport, the BC Racing ZR Series provides the adjustability and reliability expected from a leading suspension manufacturer.
BC Racing ZR Series Coilovers
BC Racing's ZR Series brings a 3-way adjustable track-ready coilover system to racers from novice to professional at a price not previously seen in the performance suspension market. Each ZR system offers independent low-speed and high-speed compression adjustment and separate rebound adjustment, with full height adjustability independent of both piston travel and spring preload. On MacPherson strut applications, the ZR uses an inverted monotube damper with a Teflon-coated steel braided line from the top of the damper to external reservoirs that can be remotely mounted in the engine bay or boot.
Key Features
- Digressive piston and damping curve
- 3-way adjustable damping controls
- 30 clicks of rebound adjustment
- 20 clicks of low-speed compression adjustment
- 12 clicks of high-speed compression adjustment
- Ride height adjustment separate to spring preload
- Inverted damper design (depending on model)
- Dual piston design (1 in reservoir, 1 in shock)
- Teflon coated steel braided lines for external reservoir
- Tapered bottom mount locking collar to prevent working loose
- Pillowball top mounts
- Custom spring rates available
- All spare parts available with low lead times
- Dust boot to protect damper seals
- 1 year manufacturer warranty
3-Way Independent Adjustment
The ZR offers 30 clicks of rebound, 20 clicks of low-speed compression and 12 clicks of high-speed compression — each circuit tuned independently. Full height adjustability is independent of both piston travel and spring preload — the most flexible setup arrangement in the BC Racing range.
Kit Specifications
- Fitment: Scion FR-S ZN6 (12+)
- Spring Rate: 6/4kg.mm
- 3-Way Adjustable Damping — 30 Rebound / 20 Low-Speed Compression / 12 High-Speed Compression
- Monotube Damper Design
- Full Ride Height Adjustment (via Bottom Mount)
- Adjustable Spring Platforms for Corner Weighting
- Tapered Bottom Mount Locking Collar
- Custom Spring Rates Available
- All Spare Parts Available
- 1 Year Manufacturer Warranty
Fitment Data
| Make | Scion |
| Model | Fr-S |
| Chassis | ZN6 (12+) |
| Series | ZR |
| Spring Rate | 6/4kg.mm |
| Part Number | U-05-ZR-ZR |
