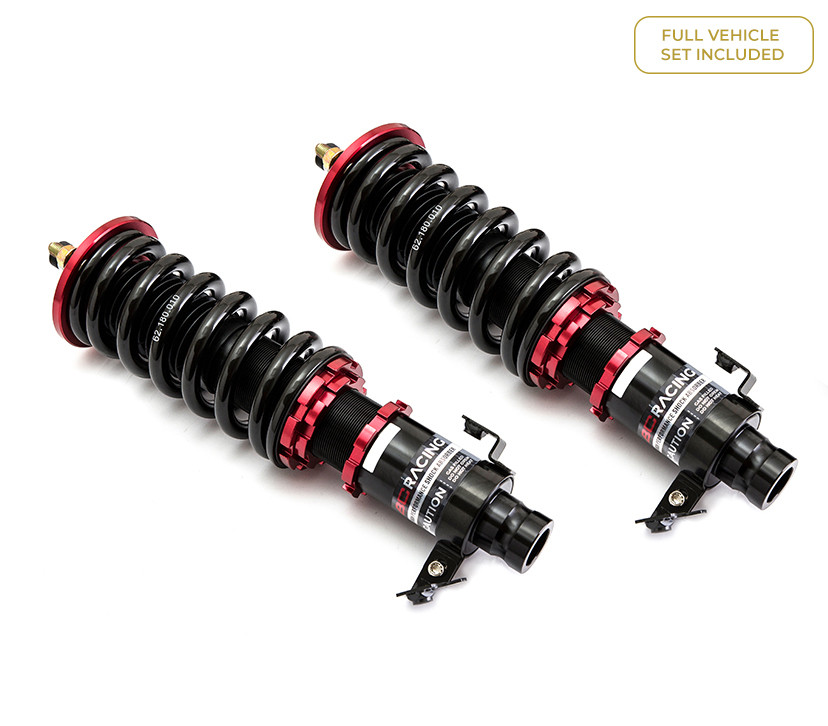

Nissan Teana J31 (02-08) BC Racing V1 Series VA Coilovers | 6.5/8kg.mm

Nissan Teana J31 (02-08) BC Racing V1 Series VA Coilovers | 6.5/8kg.mm

The BC Racing V1 Series VA Coilovers for Nissan Teana J31 (02-08) deliver precision suspension tuning with a 6.5/8kg.mm spring rate, engineered to enhance both handling and ride quality on your vehicle. These coilovers feature a pillowball top mount with camber adjustment on the front axle, whilst the rear setup includes either a rubber top mount or non-top mount configuration depending on your setup requirements. BC Racing's V1 Series represents a proven solution for drivers seeking adjustable suspension performance on the J31 platform.

BC Racing V1 Series Coilovers

The BC Racing V1 Series coilovers use a large 44mm diameter piston in a 50mm diameter damper body to maximise oil capacity. As the damper operates, the oil inside heats up — the viscosity of oil changes with temperature, which can lead to changes in the damping characteristics of the unit. BC Racing use a very high quality oil throughout their range and go a step further by building the V1 with a 50mm diameter body. This increases oil capacity, reduces the peak temperature reached during use, and significantly improves damper performance and consistency as a result.

Key Features

• 30-way adjustable damping
• Monotube damper design
• Ride height adjustment separate to spring preload
• Tapered bottom mount locking collar to prevent collar working loose
• Pillowball top mounts (depending on model)
• Bearing mounted upper spring platform
• Camber adjustable top mounts (depending on model)
• Custom spring rates available
• All spare parts available with low lead times
• Dust boot to protect damper seals

30-Way Damping Adjustment

A single adjuster controls both compression and rebound simultaneously across 30 positions, allowing the driver to set ride stiffness from a comfortable daily setting through to a firmer arrangement for track or spirited road use.

Ride Height Independent of Spring Preload

Ride height is adjusted via the bottom mount, not the spring platform — full damper travel is retained at any ride height. The tapered locking collar prevents the height setting from working loose under vibration.

The VA configuration is supplied with aluminium camber adjustable pillowball top mounts on the front (where available) and aluminium rear top mounts with rubber centres, or no rear top mounts depending on the application.

Kit Specifications

• Fitment: Nissan Teana J31 (02-08)
• Spring Rate: 6.5/8kg.mm
• 30-Way Combined Damping Adjustment
• Front Top Mount: Inc. Pillowball Top Mount / Camber where available
• Rear Top Mount: Inc. Rubber Top Mount or Non Top Mount
• Monotube Damper Design
• Full Ride Height Adjustment (via Bottom Mount)
• Adjustable Spring Platforms for Corner Weighting
• Tapered Bottom Mount Locking Collar
• Custom Spring Rates Available
• All Spare Parts Available
• 1 Year Manufacturer Warranty
