Description

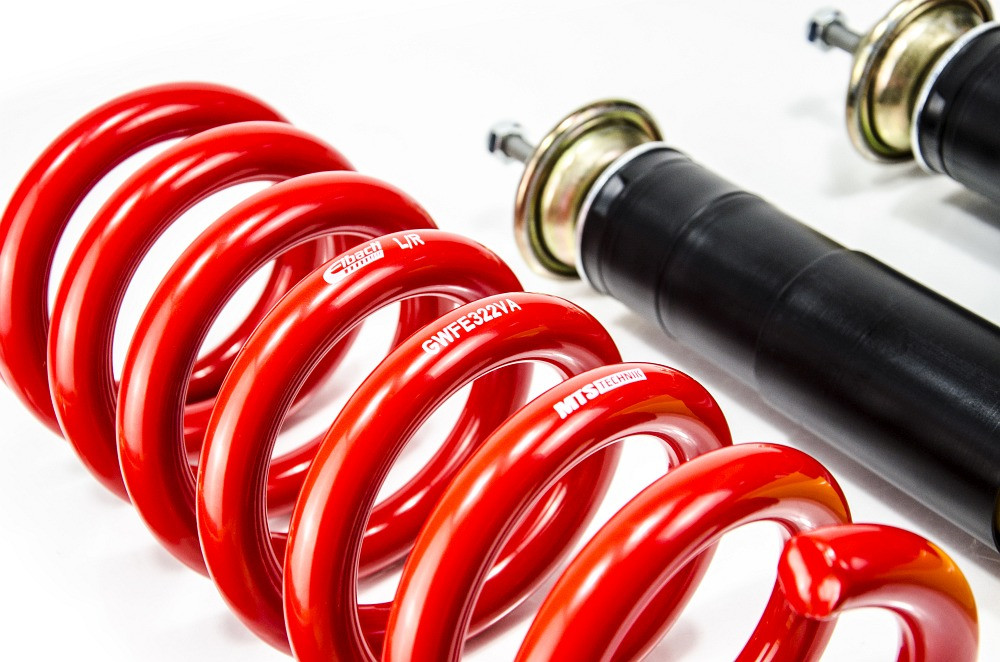

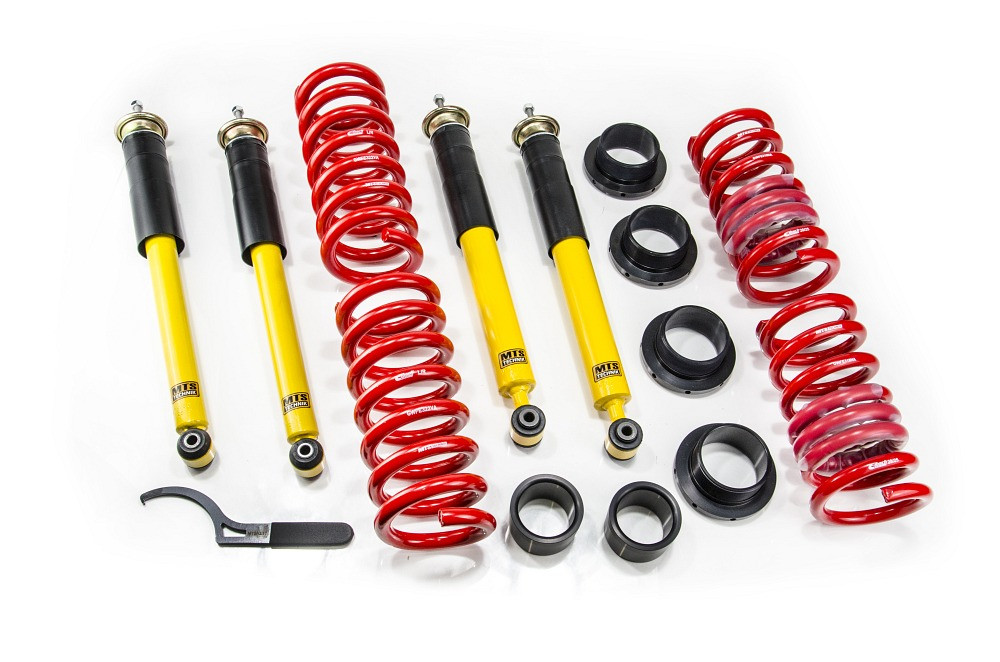

MTS Technik Coilovers (Street, Gold) for Mercedes-Benz S-CLASS (W140)
RELIABLE AND AFFORDABLE STREET SUSPENSION FROM MTS TECHNIK Street: The Street series suspension is the default configuration of MTS Technik engineers, it guarantees a wide range of lowering and a balance between comfort and stiffness.Configuration & specifications
| MTSGWMB19 | |
|---|---|
| Configuration | |
| Top mounts | Stock (not included) |
| Lowering (mm) | |
| Front | 25 - 60 mm |
| Rear | 20 - 55 mm |
| Axle load (kg) | |
| Front | -1340 kg |
| Rear | -1380 kg |
| Approval | |
| TÜV | yes |
| Documents | |
| Downloads | ⬇ Installation manual ⬇ Spare parts list ⬇ TÜV certificate |
Notes
• Front and rear height adjustable axle (front and rear springs with height adjustment element + shock absorbers).• If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
• During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
• Rear thread adjustment block is mounted on the top.
• Front thread adjustment block is mounted on the top.
• For easier height adjustment, we recommend removing the rear adjustment, changing the position of the spring plate and reinstalling the adjustment on the car.
This Kit will fit the following Vehicles:
Mercedes-Benz S-CLASS (W140) - S 350 Turbo-D (140.134) / S 300 Turbo-D (140.135) / S 280 (140.028) / 300 SE 2.8 (140.028) / S 320 / 300 SE, SEL/S320 (140.032, 140.033) / S 500 (140.050, 140.051) / 400 SE, SEL/S420 (140.042, 140.043) / S 420 / 500 SE, SEL (140.050, 140.051) / S 600 (140.056, 140.057) / 600 SE, SEL (140.056, 140.057) / S 420 (140.042, 140.043)
Mercedes-Benz S-CLASS Coupe (C140) - 500 SEC / CL 500 (140.070) / SEC/CL 420 (140.063) / SEC/CL 600 / SEC/CL 600 (140.076)
MTS TECHNIK PART NUMBER:
MTSGWMB19
