Description
MTS Technik Coilovers (Street, Gold) for BMW Z4 Roadster (E85) / Z4 Coupe (E86)
RELIABLE AND AFFORDABLE STREET SUSPENSION FROM MTS TECHNIK Street: The Street series suspension is the default configuration of MTS Technik engineers, it guarantees a wide range of lowering and a balance between comfort and stiffness.Key Features
2 year warranty with no mileage limit to confirm high quality.
Suspension components characterized by increased corrosion resistance and made of the highest quality materials.
The use of twin-tube technology guarantees stable shock absorber performance.
Pressurized gas presses the hydraulic fluid, eliminating the "foaming" effect of the oil (an undesirable and typical for oil shock absorbers phenomenon), which means higher efficiency for continuous, intensive work.
Specially selected type of thread and a wide range of suspension adjustment allows optimal setting of the car height.
A complete set ready for assembly, also including sway bar links, adapted for lowering.
Innovative hexaCOIL spring perch, significantly increasing the comfort of suspension height adjustment.
Double zinc plated steel shock absorbers as well as anodized aluminum adjusters and caps to ensure increased corrosion resistance.
Coilover springs made by Eibach, the world leader in the sport springs industry.
Features by configuration
MTSGWBM113, MTSGWBM119:

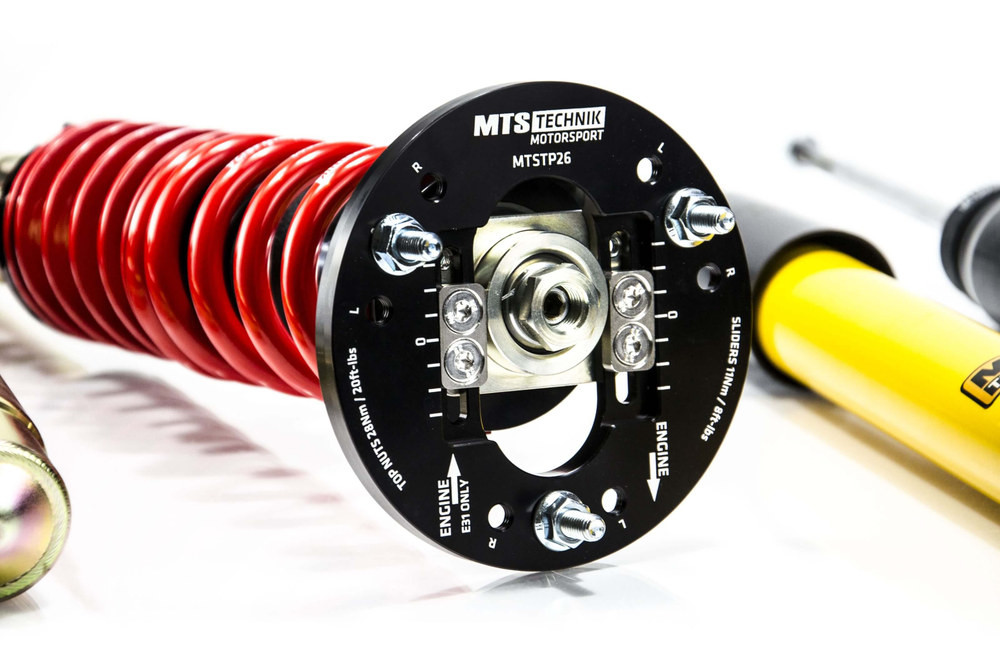

The camber plates allow the wheel angle adjustment and increase the precision of driving.
Configuration & specifications
| MTSGWBM113 | MTSGWBM119 | MTSGWBM40 | |
|---|---|---|---|
| Configuration | |||
| Top mounts | Camber adjustable (front) | Camber adjustable (front + rear) | Stock (not included) |
| Lowering (mm) | |||
| Front | 40 - 85 mm | 40 - 85 mm | 15 - 55 mm |
| Rear | 15 - 65 mm | 15 - 65 mm | 15 - 65 mm |
| Axle load (kg) | |||
| Front | -790 kg | -790 kg | -790 kg |
| Rear | -890 kg | -890 kg | -890 kg |
| Spring rates (N/mm) | |||
| Front main spring | 60 N/mm | 60 N/mm | 60 N/mm |
| Front helper spring | 20 N/mm | 20 N/mm | 20 N/mm |
| Rear main spring | 46 - 90.1 N/mm | 46 - 90.1 N/mm | 46 - 90.1 N/mm |
| Approval | |||
| TÜV | no | no | yes |
| Documents | |||
| Downloads | ⬇ Installation manual ⬇ Camber assembly manual ⬇ Spare parts list | ⬇ Installation manual ⬇ Camber assembly manual ⬇ Spare parts list | ⬇ Installation manual ⬇ Spare parts list ⬇ TÜV certificate |
Notes
• Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).• If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
• During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
• In some cases additional OE-parts for the installation of the suspension components are required. Those are not included in the set.
• Including M-Technik.
• For easier height adjustment, we recommend removing the rear adjustment, changing the position of the spring plate and reinstalling the adjustment on the car.
This Kit will fit the following Vehicles:
BMW Z4 Coupe (E86) - 3.0 si
BMW Z4 Roadster (E85) - 2.0 i / 2.2 i / 2.5 i / 2.5 si / 3.0 i / 3.0 si
MTS TECHNIK PART NUMBER:
MTSGWBM113 — Camber Front
MTSGWBM119 — Camber F+R
MTSGWBM40
