Description

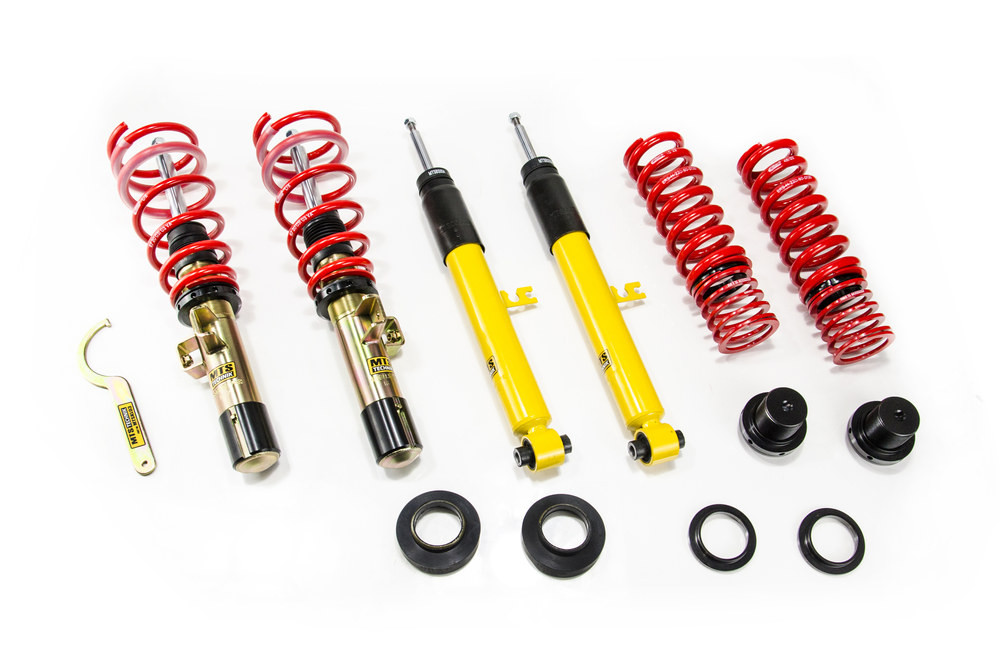

MTS Technik Coilovers (Street, Gold) for BMW 3 Touring (G21/G81) / 4 Gran Coupe (G26)
RELIABLE AND AFFORDABLE STREET SUSPENSION FROM MTS TECHNIK Street: The Street series suspension is the default configuration of MTS Technik engineers, it guarantees a wide range of lowering and a balance between comfort and stiffness.Key Features
Configuration & specifications
| MTSGWBM134 | MTSGWBM138 | MTSGWBM142 | |
|---|---|---|---|
| Configuration | |||
| Top mounts | Stock (not included) | Camber adjustable (front) | Camber adjustable (front + rear) |
| Lowering (mm) | |||
| Front | 25 – 60 mm | 25 – 60 mm | 25 – 60 mm |
| Rear | 25 – 60 mm | 25 – 60 mm | 25 – 60 mm |
| Axle load (kg) | |||
| Front | -1170 – 1101 kg | -1170 – 1101 kg | -1170 – 1101 kg |
| Rear | -1405 – -1325 kg | -1405 – -1325 kg | -1405 – -1325 kg |
| Approval | |||
| TÜV | no | no | no |
| Documents | |||
| Downloads | ⬇ Installation manual ⬇ Spare parts list | ⬇ Installation manual ⬇ Camber assembly manual ⬇ Spare parts list | ⬇ Installation manual ⬇ Camber assembly manual ⬇ Spare parts list |
Notes
• Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).• If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
• During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
• Rear thread adjustment block is mounted on the top.
• Installation is also possible for vehicles with electronic damping force adjustment. The electronic system must be deactivated in this case.
• For easier height adjustment, we recommend removing the rear adjustment, changing the position of the spring plate and reinstalling the adjustment on the car.
Notes by configuration
MTSGWBM138, MTSGWBM142:
- The kit includes 2 upper front camber plates.
- Not for ST.
This Kit will fit the following Vehicles:
BMW 3 (G20/G80/G28) - 330 e Plug-in-Hybrid xDrive
BMW 3 Touring (G21/G81) - M 340 i xDrive / 330 d Mild-Hybrid xDrive / 320 d Mild-Hybrid xDrive / M 340 d Mild-Hybrid xDrive / M 340 i Mild-Hybrid xDrive / 320 e Plug-in-Hybrid xDrive / 330 e Plug-in-Hybrid xDrive / 330 d xDrive
BMW 3 Touring Van (G21) - 330 d xDrive / M 340 i xDrive / 320 d Mild-Hybrid xDrive
BMW 4 Convertible (G23/G83) - M 440 i Mild-Hybrid xDrive / M440 d Mild-Hybrid xDrive / 430 i xDrive
BMW 4 Coupe (G22/G82) - M 440 i Mild-Hybrid xDrive / 430 d Mild-Hybrid xDrive / M440 d Mild-Hybrid xDrive
BMW 4 Gran Coupe (G26) - M440 i Mild-Hybrid xDrive / 420 d Mild-Hybrid xDrive / 430 i xDrive / 430 d Mild-Hybrid xDrive
MTS TECHNIK PART NUMBER:
MTSGWBM134
MTSGWBM138 — Camber Front
MTSGWBM142 — Camber F+R
