Description

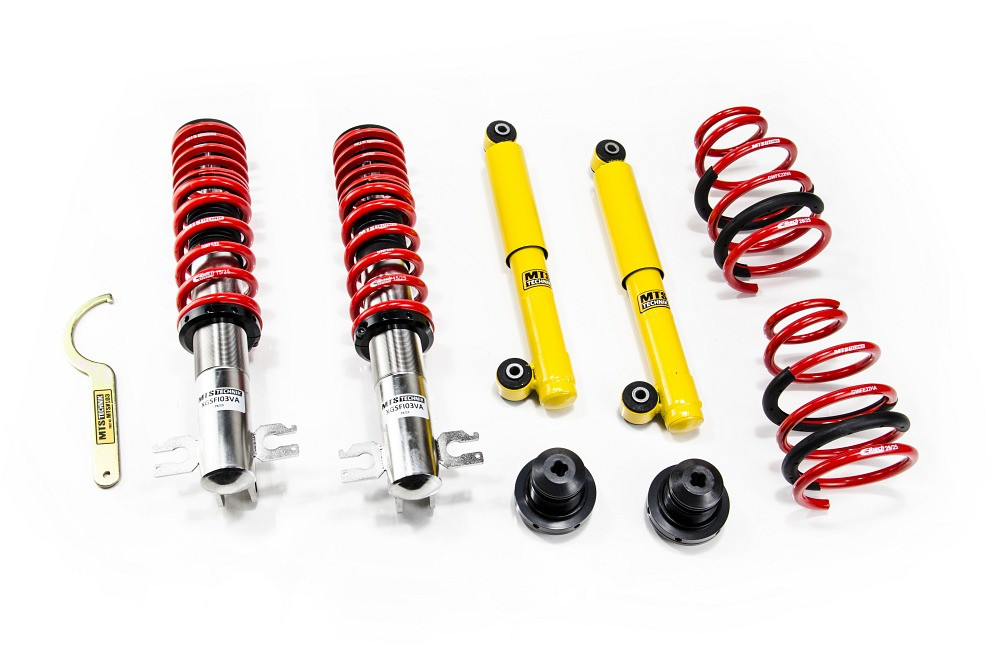

MTS Technik Coilovers (Stance, Inox) for Fiat CINQUECENTO (170)
RELIABLE AND AFFORDABLE STANCE SUSPENSION FROM MTS TECHNIK Stance: The Stance series suspension is an offer for lovers of significant lowering and stiffer characteristics, a set dedicated to demanding drivers.Key Features
2 year warranty with no mileage limit to confirm high quality.
Suspension components characterized by increased corrosion resistance and made of the highest quality materials.
The use of twin-tube technology guarantees stable shock absorber performance.
Pressurized gas presses the hydraulic fluid, eliminating the "foaming" effect of the oil (an undesirable and typical for oil shock absorbers phenomenon), which means higher efficiency for continuous, intensive work.
Specially selected type of thread and a wide range of suspension adjustment allows optimal setting of the car height.
Innovative hexaCOIL spring perch, significantly increasing the comfort of suspension height adjustment.
Coilover springs made by Eibach, the world leader in the sport springs industry.
Stainless steel threaded shock absorbers.
Features by configuration
XMTSGWFI09-S — Camber adjustable (front):
The camber plates allow the wheel angle adjustment and increase the precision of driving.
Configuration & specifications
| XMTSGWFI08-S | XMTSGWFI09-S | |
|---|---|---|
| Configuration | ||
| Top mounts | Stock (not included) | Camber adjustable (front) |
| Lowering (mm) | ||
| Front | 40 - 100 mm | 30 - 90 mm |
| Rear | 50 - 100 mm | 50 - 100 mm |
| Axle load (kg) | ||
| Front | -610 kg | -610 kg |
| Rear | -630 kg | -630 kg |
| Spring rates (N/mm) | ||
| Front main spring | 70 N/mm | 70 N/mm |
| Front helper spring | 20 N/mm | 20 N/mm |
| Rear main spring | 25 - 50 - 70 N/mm | 25 - 50 - 70 N/mm |
| Approval | ||
| TÜV | yes | no |
| Documents | ||
| Downloads | ⬇ Installation manual ⬇ Spare parts list ⬇ TÜV certificate | ⬇ Installation manual ⬇ Camber assembly manual ⬇ Spare parts list |
Notes
• Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).• If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
• During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
• For easier height adjustment, we recommend removing the rear adjustment, changing the position of the spring plate and reinstalling the adjustment on the car.
This Kit will fit the following Vehicles:
Fiat CINQUECENTO (170) - 0.7 (170AA) / 0.7 i (170AD) / 0.9 (170AB) / 0.9 i.e. (170AC) / 0.9 i.e. S (170AF, 170CF) / 1.1 Sporting (170AH)
Fiat SEICENTO / 600 (187) - 0.9 (187AXA, 187AXA1A) / 1.1 (187AXB, 187AXB1A, 187AXC1A02)
MTS TECHNIK PART NUMBER:
XMTSGWFI08-S
XMTSGWFI09-S — Camber Front
