Description

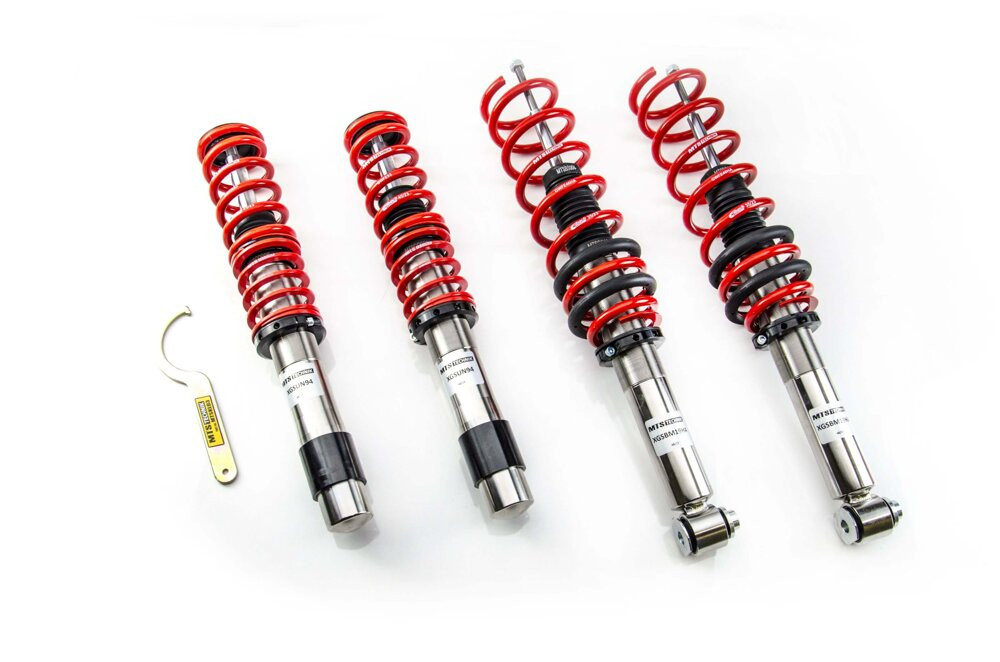

MTS Technik Coilovers (Stance, Inox) for BMW 5 (E39)
RELIABLE AND AFFORDABLE STANCE SUSPENSION FROM MTS TECHNIK Stance: The Stance series suspension is an offer for lovers of significant lowering and stiffer characteristics, a set dedicated to demanding drivers.Key Features
2 year warranty with no mileage limit to confirm high quality.
Suspension components characterized by increased corrosion resistance and made of the highest quality materials.
The use of twin-tube technology guarantees stable shock absorber performance.
Pressurized gas presses the hydraulic fluid, eliminating the "foaming" effect of the oil (an undesirable and typical for oil shock absorbers phenomenon), which means higher efficiency for continuous, intensive work.
Specially selected type of thread and a wide range of suspension adjustment allows optimal setting of the car height.
Innovative hexaCOIL spring perch, significantly increasing the comfort of suspension height adjustment.
Coilover springs made by Eibach, the world leader in the sport springs industry.
Stainless steel threaded shock absorbers.
Features by configuration
XMTSGWBM101-S — Camber adjustable (front):
The camber plates allow the wheel angle adjustment and increase the precision of driving.
Configuration & specifications
| XMTSGWBM04-S | XMTSGWBM101-S | |
|---|---|---|
| Configuration | ||
| Top mounts | Stock (not included) | Camber adjustable (front) |
| Lowering (mm) | ||
| Front | 20 - 70 mm | 40 - 90 mm |
| Rear | 30 - 120 mm | 30 - 120 mm |
| Axle load (kg) | ||
| Front | -1105 kg | -1105 kg |
| Rear | -1225 kg | -1225 kg |
| Spring rates (N/mm) | ||
| Front main spring | 90 N/mm | 90 N/mm |
| Front helper spring | 20 N/mm | 20 N/mm |
| Rear main spring | 25 - 33.5 - 43 N/mm | 25 - 33.5 - 43 N/mm |
| Approval | ||
| TÜV | yes | no |
| Documents | ||
| Downloads | ⬇ Installation manual ⬇ Spare parts list ⬇ TÜV certificate | ⬇ Installation manual ⬇ Camber assembly manual ⬇ Spare parts list |
Notes
• Front and rear axle height adjustable (threaded shock absorber housing).• Not for 4x4.
• Only for vehicles without NIVO / OEM pneumatic suspension.
• Only for vehicles without EDC.
• If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
• During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
Notes by configuration
XMTSGWBM04-S — Stock (not included):
- For vehicles equipped with EDC and / or V8 engines, additional original parts will be required. FRONT AXLE: 2x upper mount (BMW part no.: 31336752735), 2x washer (BMW part no.: 31336776760), 2x sealing washer (BMW part no.: 31331110196). REAR AXLE: 2x upper mount (BMW part no.: 33521091710), 2x support washer (BMW part no.: 33521090282 - can be replaced with MTS Technik washer no.: 303202060), 2x washer (BMW part no.: 33521092986 - can be replaced with MTS Technik washer no.: 303202060). To purchase the 303202060 washer, contact the MTS Technik sales department.
XMTSGWBM101-S — Camber adjustable (front):
- For easier height adjustment, we recommend removing the rear adjustment, changing the position of the spring plate and reinstalling the adjustment on the car.
- For vehicles equipped with EDC and / or V8 engines, additional original parts will be required. REAR AXLE: 2x upper mount (BMW part no.: 33521091710), 2x support washer (BMW part no.: 33521090282 - can be replaced with MTS Technik washer no.: 303202060), 2x washer (BMW part no.: 33521092986 - can be replaced with MTS Technik washer no.: 303202060). To purchase the 303202060 washer, contact the MTS Technik sales department.
This Kit will fit the following Vehicles:
BMW 5 (E39) - 520 d / 520 i / 523 i / 525 d / 525 i / 525 td / 525 tds / 528 i / 530 d / 530 i / 535 i / 540 i / M5
MTS TECHNIK PART NUMBER:
XMTSGWBM04-S
XMTSGWBM101-S — Camber Front
