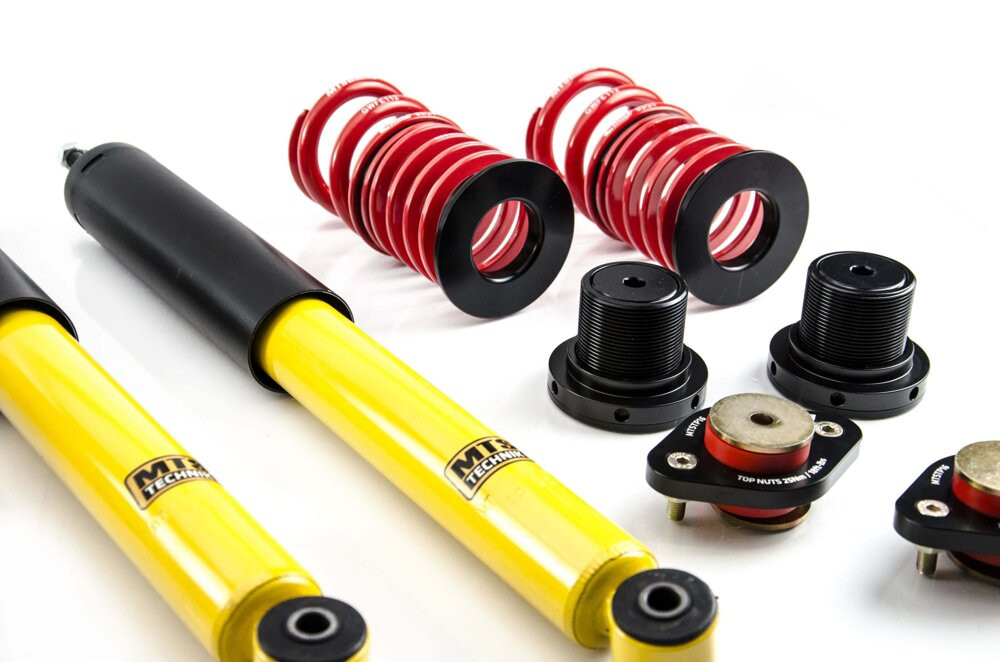

MTS Technik Coilovers (Stance, Inox) for BMW 3 (E30) / 3 Touring (E30)
RELIABLE AND AFFORDABLE STANCE SUSPENSION FROM MTS TECHNIK Stance: The Stance series suspension is an offer for lovers of significant lowering and stiffer characteristics, a set dedicated to demanding drivers.Key Features
2 year warranty with no mileage limit to confirm high quality.
Suspension components characterized by increased corrosion resistance and made of the highest quality materials.
The use of twin-tube technology guarantees stable shock absorber performance.
Pressurized gas presses the hydraulic fluid, eliminating the "foaming" effect of the oil (an undesirable and typical for oil shock absorbers phenomenon), which means higher efficiency for continuous, intensive work.
Specially selected type of thread and a wide range of suspension adjustment allows optimal setting of the car height.

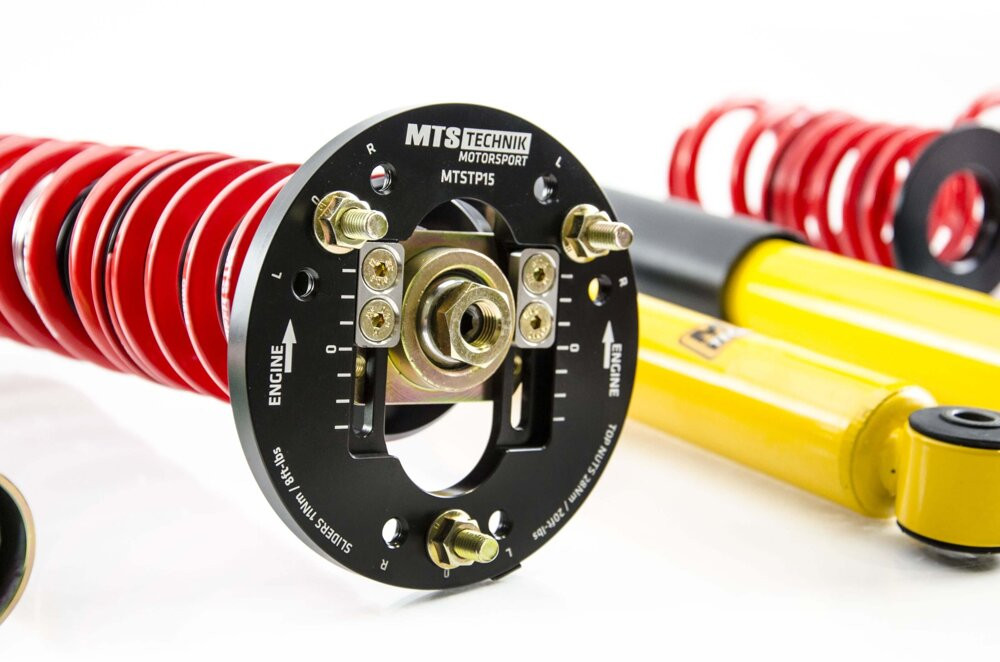

The camber plates allow the wheel angle adjustment and increase the precision of driving.
Innovative hexaCOIL spring perch, significantly increasing the comfort of suspension height adjustment.
Additional height adjustment at the bottom mounting, allowing the car's height reduction to be changed, without interfering with the spring operation characteristics.
Coilover springs made by Eibach, the world leader in the sport springs industry.
Stainless steel threaded shock absorbers.
Configuration & specifications
| XMTSGWBM102-S | XMTSGWBM105-S | XMTSGWBM11-S | XMTSGWBM15-S | |
|---|---|---|---|---|
| Configuration | ||||
| Top mounts | Camber adjustable (front + rear) | Camber adjustable (front + rear) | Camber adjustable (front) | Camber adjustable (front) |
| Front strut | 51 mm | 45 mm | 51 mm | 45 mm |
| Lowering (mm) | ||||
| Front | 25 - 90 mm | 25 - 90 mm | 25 - 90 mm | 25 - 90 mm |
| Rear | 10 - 50 mm | 10 - 50 mm | 10 - 50 mm | 10 - 50 mm |
| Axle load (kg) | ||||
| Front | -865 kg | -865 kg | -865 kg | -865 kg |
| Rear | -1030 kg | -1030 kg | -1030 kg | -1030 kg |
| Spring rates (N/mm) | ||||
| Front main spring | 80 N/mm | 80 N/mm | 80 N/mm | 80 N/mm |
| Front helper spring | 20 N/mm | 20 N/mm | 20 N/mm | 20 N/mm |
| Rear main spring | 260 N/mm | 260 N/mm | 260 N/mm | 260 N/mm |
| Rear helper spring | 20 N/mm | 20 N/mm | 20 N/mm | 20 N/mm |
| Approval | ||||
| TÜV | no | no | no | no |
| Documents | ||||
| Downloads | ⬇ Installation manual ⬇ Camber assembly manual ⬇ Spare parts list | ⬇ Installation manual ⬇ Camber assembly manual ⬇ Spare parts list | ⬇ Installation manual ⬇ Camber assembly manual ⬇ Spare parts list | ⬇ Installation manual ⬇ Camber assembly manual ⬇ Spare parts list |
Notes
• Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).• Not for 4x4.
• If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
• During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
• Independent height adjustment at the lower brackets on the front dampers.
• The kit includes 2 upper front camber plates.
• The installation requires the use of OE front struts - they should be cut and welded as described in the attached manual.
• Including M-Technik.
• Rear thread adjustment block is mounted on the top.
• For easier height adjustment, we recommend removing the rear adjustment, changing the position of the spring plate and reinstalling the adjustment on the car.
This Kit will fit the following Vehicles:
BMW 3 (E30) - 315 / 316 / 316 i / 318 i / 318 is / 320 i / 323 i / 324 d / 324 td / 325 e 2.7 / 325 i
BMW 3 Convertible (E30) - 318 i / 320 i / 325 i
BMW 3 Touring (E30) - 316 i / 318 i / 320 i / 324 td / 325 i
MTS TECHNIK PART NUMBER:
XMTSGWBM102-S — Camber F+R
XMTSGWBM105-S — Camber F+R
XMTSGWBM11-S — Camber Front
XMTSGWBM15-S — Camber Front
