Description

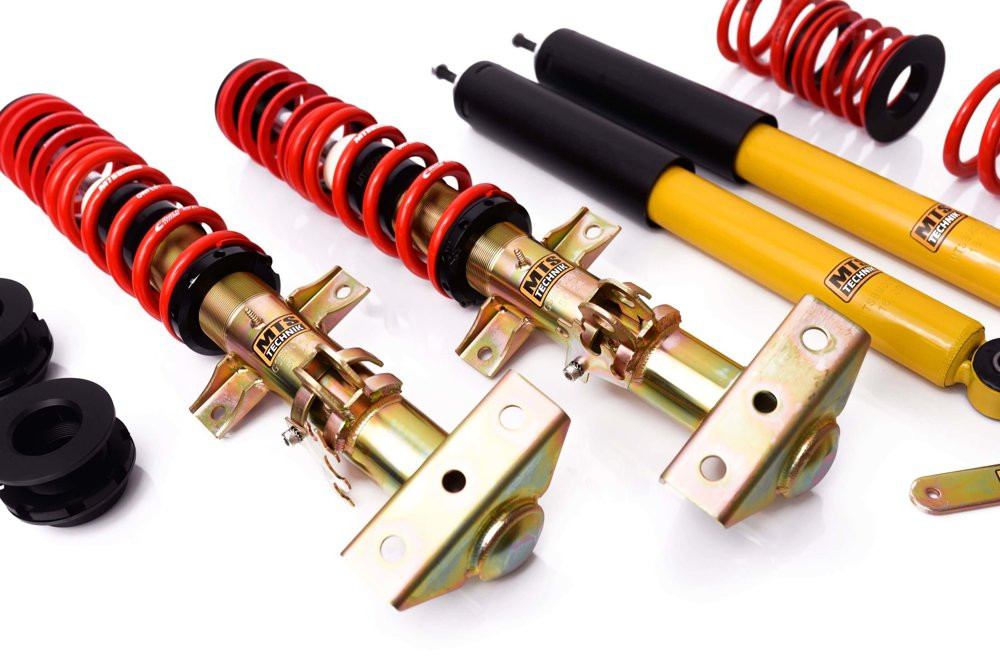

MTS Technik Coilovers (Stance, Gold) for BMW Z3 Roadster (E36) / 3 Compact (E36)
RELIABLE AND AFFORDABLE STANCE SUSPENSION FROM MTS TECHNIK Stance: The Stance series suspension is an offer for lovers of significant lowering and stiffer characteristics, a set dedicated to demanding drivers.Key Features
2 year warranty with no mileage limit to confirm high quality.
Suspension components characterized by increased corrosion resistance and made of the highest quality materials.
The use of twin-tube technology guarantees stable shock absorber performance.
Pressurized gas presses the hydraulic fluid, eliminating the "foaming" effect of the oil (an undesirable and typical for oil shock absorbers phenomenon), which means higher efficiency for continuous, intensive work.
Specially selected type of thread and a wide range of suspension adjustment allows optimal setting of the car height.
Innovative hexaCOIL spring perch, significantly increasing the comfort of suspension height adjustment.
Double zinc plated steel shock absorbers as well as anodized aluminum adjusters and caps to ensure increased corrosion resistance.
Coilover springs made by Eibach, the world leader in the sport springs industry.
Features by configuration
MTSGWBM117-S, MTSGWBM99-S:
The camber plates allow the wheel angle adjustment and increase the precision of driving.
Configuration & specifications
| MTSGWBM02-S | MTSGWBM117-S | MTSGWBM99-S | |
|---|---|---|---|
| Configuration | |||
| Top mounts | Stock (not included) | Camber adjustable (front) | Camber adjustable (front + rear) |
| Lowering (mm) | |||
| Front | 15 – 90 mm | 40 - 110 mm | 40 - 110 mm |
| Rear | 10 - 50 mm | 10 - 50 mm | 10 - 50 mm |
| Axle load (kg) | |||
| Front | -920 kg | -920 kg | -920 kg |
| Rear | -1040 kg | -1040 kg | -1040 kg |
| Spring rates (N/mm) | |||
| Front main spring | 80 N/mm | 80 N/mm | 80 N/mm |
| Front helper spring | 20 N/mm | 20 N/mm | 20 N/mm |
| Rear main spring | 240 N/mm | 240 N/mm | 240 N/mm |
| Rear helper spring | 20 N/mm | 20 N/mm | 20 N/mm |
| Approval | |||
| TÜV | yes | no | no |
| Documents | |||
| Downloads | ⬇ Installation manual ⬇ Spare parts list ⬇ TÜV certificate | ⬇ Installation manual ⬇ Camber assembly manual ⬇ Spare parts list | ⬇ Camber assembly manual ⬇ Camber assembly manual ⬇ Spare parts list |
Notes
• Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).• If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
• During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
• Including M-Technik.
• For models up to 11/91 and M3 - the shortened sway bar link MTSLS08 shall be purchased separately.
• For easier height adjustment, we recommend removing the rear adjustment, changing the position of the spring plate and reinstalling the adjustment on the car.
This Kit will fit the following Vehicles:
BMW 3 Compact (E36) - 316 g / 316 i / 318 tds / 318 ti / 323 ti
BMW Z3 Coupe (E36) - 2.8 i / 3.0 i / M 3.2
BMW Z3 Roadster (E36) - 1.8 i / 1.9 i / 2.0 i / 2.2 i / 2.8 i / 3.0 i / M 3.2
MTS TECHNIK PART NUMBER:
MTSGWBM02-S
MTSGWBM117-S — Camber Front
MTSGWBM99-S — Camber F+R
