Description

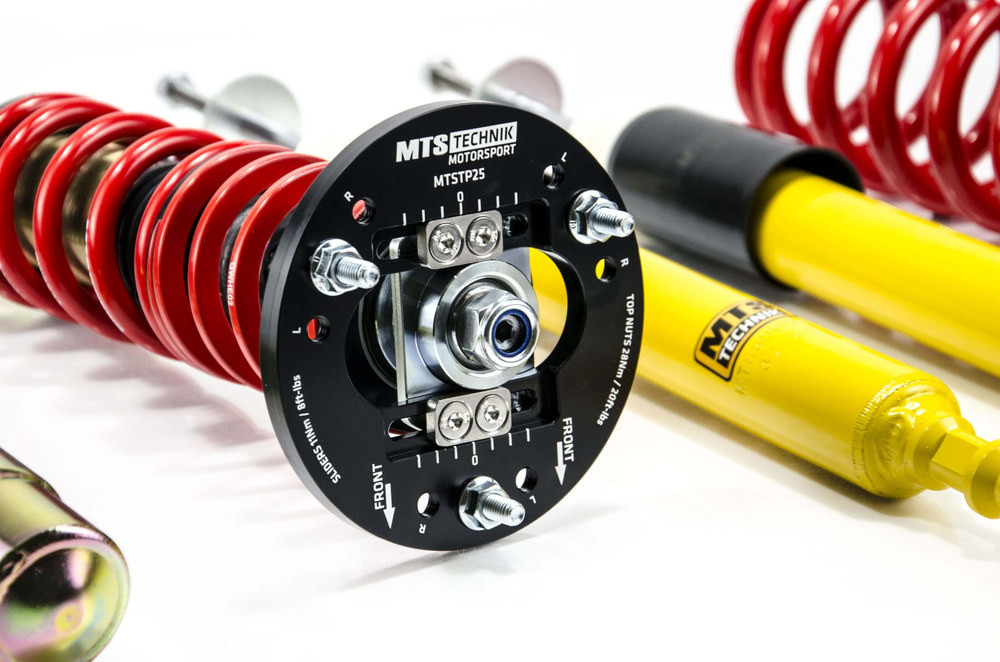

MTS Technik Coilovers (Stance, Gold) for BMW 3 Touring (E91)
RELIABLE AND AFFORDABLE STANCE SUSPENSION FROM MTS TECHNIK Stance: The Stance series suspension is an offer for lovers of significant lowering and stiffer characteristics, a set dedicated to demanding drivers.Key Features
2 year warranty with no mileage limit to confirm high quality.
Suspension components characterized by increased corrosion resistance and made of the highest quality materials.
The use of twin-tube technology guarantees stable shock absorber performance.
Pressurized gas presses the hydraulic fluid, eliminating the "foaming" effect of the oil (an undesirable and typical for oil shock absorbers phenomenon), which means higher efficiency for continuous, intensive work.
Specially selected type of thread and a wide range of suspension adjustment allows optimal setting of the car height.
Innovative hexaCOIL spring perch, significantly increasing the comfort of suspension height adjustment.
Double zinc plated steel shock absorbers as well as anodized aluminum adjusters and caps to ensure increased corrosion resistance.
Coilover springs made by Eibach, the world leader in the sport springs industry.
Features by configuration
MTSGWBM115-S — Camber adjustable (front):
The camber plates allow the wheel angle adjustment and increase the precision of driving.
Configuration & specifications
| MTSGWBM115-S | MTSGWBM47-S | |
|---|---|---|
| Configuration | ||
| Top mounts | Camber adjustable (front) | Stock (not included) |
| Lowering (mm) | ||
| Front | 20 - 65 mm | 0 - 45 mm |
| Rear | 0 - 40 mm | 0 - 40 mm |
| Axle load (kg) | ||
| Front | -1090 kg | -1090 kg |
| Rear | -1200 kg | -1200 kg |
| Spring rates (N/mm) | ||
| Front main spring | 70 N/mm | 70 N/mm |
| Front helper spring | 20 N/mm | 20 N/mm |
| Rear main spring | 120 N/mm | 120 N/mm |
| Rear helper spring | 20 N/mm | 20 N/mm |
| Approval | ||
| TÜV | no | yes |
| Documents | ||
| Downloads | ⬇ Installation manual ⬇ Camber assembly manual ⬇ Spare parts list | ⬇ Installation manual ⬇ Spare parts list ⬇ TÜV certificate |
Notes
• Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).• If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
• During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
• In some cases additional OE-parts for the installation of the suspension components are required. Those are not included in the set.
• Including M-Technik.
• For easier height adjustment, we recommend removing the rear adjustment, changing the position of the spring plate and reinstalling the adjustment on the car.
This Kit will fit the following Vehicles:
BMW 3 Touring (E91) - 320 d xDrive / 325 i xDrive / 325 xi / 330 d xDrive / 330 i xDrive / 330 xd / 330 xi / 335 i xDrive / 335 xi
MTS TECHNIK PART NUMBER:
MTSGWBM115-S — Camber Front
MTSGWBM47-S
