Description

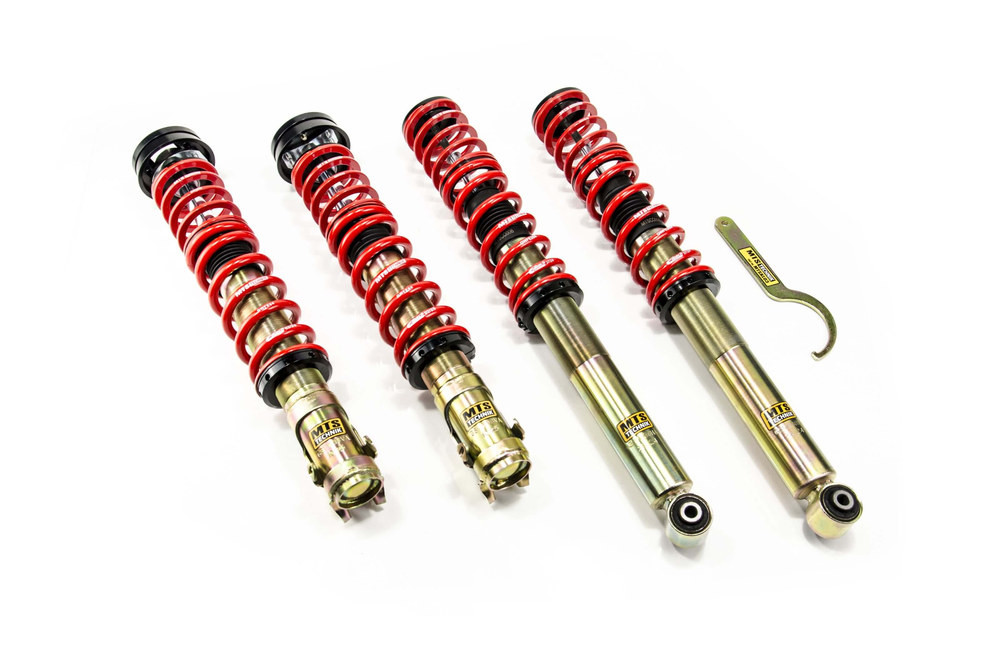

MTS Technik Coilovers (Comfort, Gold) for Volkswagen PASSAT B3/B4 (3A2/35I)
RELIABLE AND AFFORDABLE COMFORT SUSPENSION FROM MTS TECHNIK Comfort: The Comfort series suspension is the most balanced setup with softer spring rates — ideal for daily driving while still offering noticeable lowering.Key Features
2 year warranty with no mileage limit to confirm high quality.
Suspension components characterized by increased corrosion resistance and made of the highest quality materials.
The use of twin-tube technology guarantees stable shock absorber performance.
Pressurized gas presses the hydraulic fluid, eliminating the "foaming" effect of the oil (an undesirable and typical for oil shock absorbers phenomenon), which means higher efficiency for continuous, intensive work.
Specially selected type of thread and a wide range of suspension adjustment allows optimal setting of the car height.
Innovative hexaCOIL spring perch, significantly increasing the comfort of suspension height adjustment.
Double zinc plated steel shock absorbers as well as anodized aluminum adjusters and caps to ensure increased corrosion resistance.
Coilover springs made by Eibach, the world leader in the sport springs industry.
Features by configuration
MTSGWVW122-C — Camber adjustable (front):
The camber plates allow the wheel angle adjustment and increase the precision of driving.
Configuration & specifications
| MTSGWVW122-C | MTSGWVW54-C | |
|---|---|---|
| Configuration | ||
| Top mounts | Camber adjustable (front) | Stock (not included) |
| Lowering (mm) | ||
| Front | 20 - 80 mm | 20 - 80 mm |
| Rear | 15 - 80 mm | 15 - 80 mm |
| Axle load (kg) | ||
| Front | -1020 kg | -1020 kg |
| Rear | -1020 kg | -1020 kg |
| Spring rates (N/mm) | ||
| Front main spring | 60 N/mm | 60 N/mm |
| Front helper spring | 20 N/mm | 20 N/mm |
| Rear main spring | 40 N/mm | 40 N/mm |
| Rear helper spring | 20 N/mm | 20 N/mm |
| Approval | ||
| TÜV | no | yes |
| Documents | ||
| Downloads | ⬇ Installation manual ⬇ Camber assembly manual ⬇ Spare parts list | ⬇ Installation manual ⬇ Spare parts list ⬇ TÜV certificate |
Notes
• If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.• During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
Notes by configuration
MTSGWVW122-C — Camber adjustable (front):
- Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).
- Only for vehicles without electronic damping.
- The kit includes 2 upper front camber plates.
- Rear thread adjustment block is mounted on the top.
- For easier height adjustment, we recommend removing the rear adjustment, changing the position of the spring plate and reinstalling the adjustment on the car.
MTSGWVW54-C — Stock (not included):
- Front and rear axle height adjustable (threaded shock absorber housing).
- Not for 4x4.
This Kit will fit the following Vehicles:
Volkswagen PASSAT B3/B4 (3A2/35I) - 1.6 / 2.8 VR6 / 2.0 / 1.9 TDI / 1.9 TD / 1.9 D / 1.6 TD / 2.0 16V / 1.8 GL / 1.8 / 1.8 16V
Volkswagen PASSAT B3/B4 Variant (3A5/35I) - 1.6 / 1.6 TD / 1.8 / 1.9 D / 1.9 TD / 1.9 TDI / 2.0 / 2.0 16V / 2.8 VR6 / 1.8 16V
MTS TECHNIK PART NUMBER:
MTSGWVW122-C — Camber Front
MTSGWVW54-C
