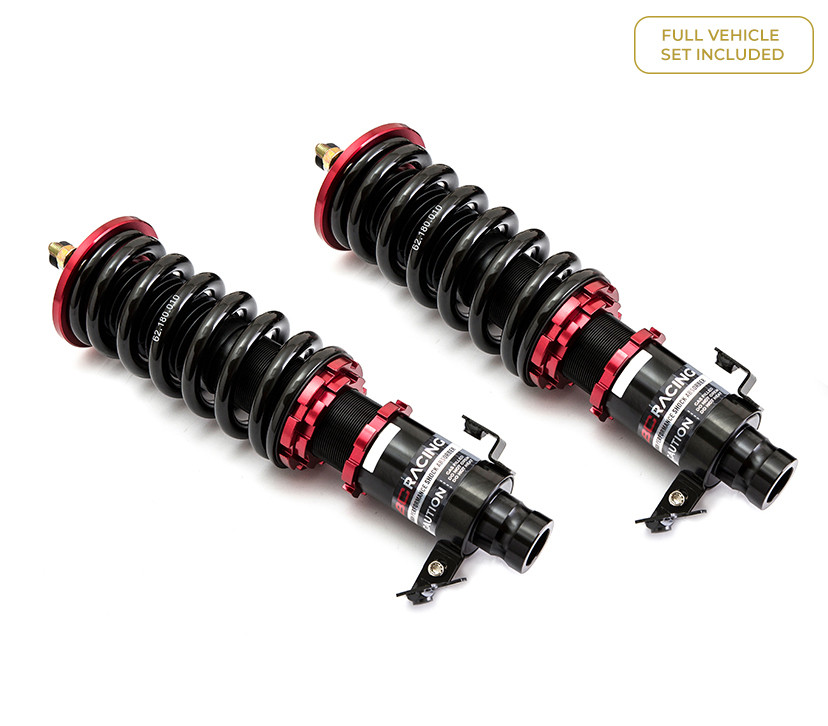

Honda FREED HYBRID FWD GB7 (16+) BC Racing V1 Series VN Coilovers | 6/4kg.mm

Honda FREED HYBRID FWD GB7 (16+) BC Racing V1 Series VN Coilovers | 6/4kg.mm

The BC Racing V1 Series VN Coilovers for Honda FREED HYBRID FWD GB7 (16+) deliver precision suspension tuning with a 6/4kg.mm spring rate, engineered to enhance handling and ride quality on UK roads. This complete coilover system comes without top mounts front and rear, offering a direct fitment solution tailored specifically for your vehicle. Built with BC Racing's proven V1 platform, these coilovers provide adjustable damping and lowering capabilities for both daily driving and spirited performance.

BC Racing V1 Series Coilovers

The BC Racing V1 Series coilovers use a large 44mm diameter piston in a 50mm diameter damper body to maximise oil capacity. As the damper operates, the oil inside heats up — the viscosity of oil changes with temperature, which can lead to changes in the damping characteristics of the unit. BC Racing use a very high quality oil throughout their range and go a step further by building the V1 with a 50mm diameter body. This increases oil capacity, reduces the peak temperature reached during use, and significantly improves damper performance and consistency as a result.

Key Features

• 30-way adjustable damping
• Monotube damper design
• Ride height adjustment separate to spring preload
• Tapered bottom mount locking collar to prevent collar working loose
• Pillowball top mounts (depending on model)
• Bearing mounted upper spring platform
• Camber adjustable top mounts (depending on model)
• Custom spring rates available
• All spare parts available with low lead times
• Dust boot to protect damper seals

30-Way Damping Adjustment

A single adjuster controls both compression and rebound simultaneously across 30 positions, allowing the driver to set ride stiffness from a comfortable daily setting through to a firmer arrangement for track or spirited road use.

Ride Height Independent of Spring Preload

Ride height is adjusted via the bottom mount, not the spring platform — full damper travel is retained at any ride height. The tapered locking collar prevents the height setting from working loose under vibration.

The VN configuration is supplied without front top mounts — designed to reuse the OEM front top mount — and with aluminium rear top mounts with rubber centres or no rear top mounts depending on the application.

Kit Specifications

• Fitment: Honda FREED HYBRID FWD GB7 (16+)
• Spring Rate: 6/4kg.mm
• 30-Way Combined Damping Adjustment
• Front Top Mount: Without Top Mount
• Rear Top Mount: Without Top Mount
• Monotube Damper Design
• Full Ride Height Adjustment (via Bottom Mount)
• Adjustable Spring Platforms for Corner Weighting
• Tapered Bottom Mount Locking Collar
• Custom Spring Rates Available
• All Spare Parts Available
• 1 Year Manufacturer Warranty
