Front Upper Engine Mount Insert (Diesel) - PFF5-224R

PFF5-224R is made from the softest Red 65A material, specifically designed to minimise NVH transmission. Recommended for unmodified Diesel models or for drivers who want a subtle improvement in driving feel without compromising comfort. A small increase inNVH, usually at idle, should be expected when stiffening the connecting mount between the engine/transmission and chassis. The harder the material used, the greater the NVH transmitted. Complimenting products such as PFF5-220 and PFF5-225, the new PFF5-224R Upper Engine Mount Insert is designed to fill the void in the OE rubber upper engine mount to restrict movement. The original rubber engine mount softens and perishes with age, losing its ability to dampen effectively and promoting unwanted engine movement. By fitting the new insert, it acts as a buffer by restricting movement within the bush thus improving throttle response, sharpening gear changes, and reducing wheel hop for improved traction. The bush requires no pressing or burning, simply peen the insert into position and refit the mount!

Diagram Reference

24

Compound

Road Series - Diesel

Location on Vehicle

Front

Adjustment

Fixed

Complimenting products such as PFF5-220 and PFF5-225 , the new PFF5-224Upper Engine Mount Insert is designed to fill the void in the OE rubber upper engine mount to restrict movement.The original rubber engine mount softens and perishes with age, losingitsability to dampen effectively andpromoting unwanted engine movement. By fitting our new insert, it acts as a buffer by restricting movement within the bush thus improving throttle response, sharpeninggear changes, and reducingwheel hop for improved traction.The bush requires no pressing or burning, simply peen the insert into position and refit the mount!

Included in the Kit:

1 x PFF5-224R - Upper Engine Mount Insert (Diesel)

Replaces Part Numbers

22 11 4 050 886 - 22114050886 - 4 050 886 - 4050886
22 11 6 782 374 - 22116782374 - 6 782 374 - 6782374
40 50 8 86 - 4050886 - 8 86 - 886
67 82 3 74 - 6782374 - 3 74 - 374

Alternative Item

For Tuned Diesel Models, use PFF5-224

PFF5-224 - Upper Engine Mount Insert (Petrol/Tuned Diesel)

Related Items

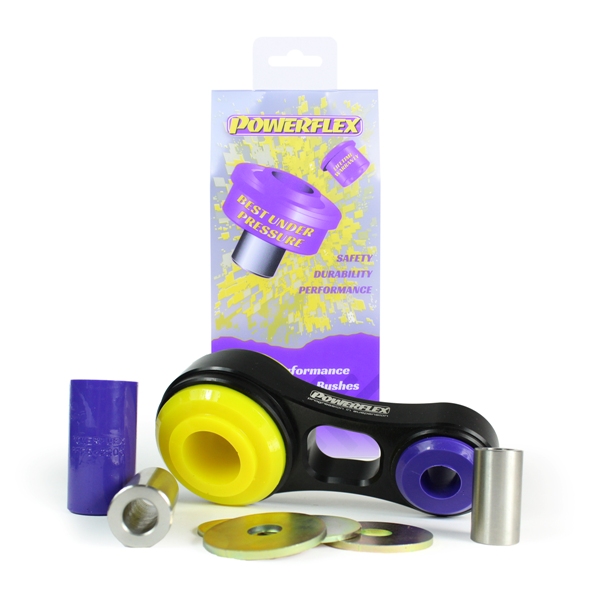

PFF5-220 - Lower Torque Mount, Fast Road
Suitable to be used with PFF5-220

PFF5-225 - Upper Gearbox Mount Insert (Petrol/Tuned Diesel)
Suitable to be used with PFF5-225

To fit the following vehicles

R55 Clubman Gen 1 - 2007-2014
R56 & 57 Gen 2 - 2006-2013
R58 Coupe - 2011-2015
R59 Roadster - 2012-2015
R60 Countryman Gen 1 2WD - 2010-2016
R60 Countryman Gen 1 4WD - 2010-2016
R61 Paceman 2WD - 2013-2016
R61 Paceman 4WD - 2013-2016
