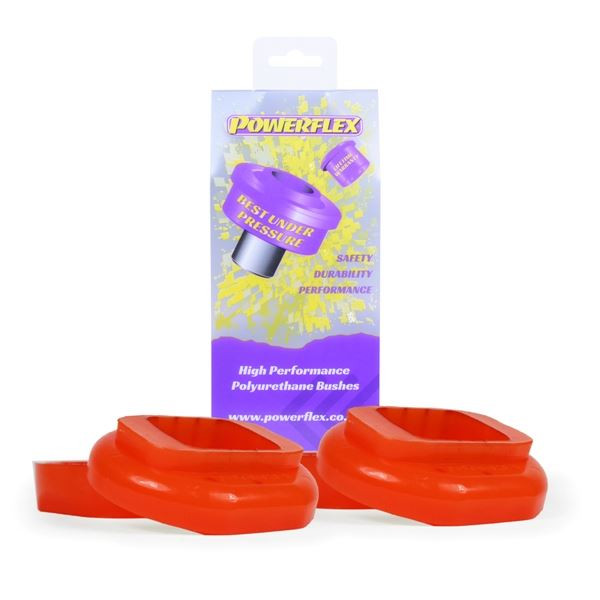

Front Engine Mount Insert - 2 x PFF5-5452

PFF5-5452 Engine Mount Insert is a two-piece kit made using our Red 65A durometer material, designed to fill the voiding of the OE rubber mount to limit drivetrain movement and sharpen throttle response on standard or mildly tuned vehicles. Mount rigidity is increased by 100%. A small increase inNVH, usually at idle, should be expected when stiffening the connecting mount between the engine/transmission and chassis. The harder the material used, the greater the NVH transmitted.

Diagram Reference

20

Compound

Road Series

Location on Vehicle

Front

Adjustment

Fixed

Included in the Kit:

2 x PFF5-5452 - Engine Mount Insert

Replaces Part Numbers

31 12 6 783 376 - 31126783376 - 6 783 376 - 6783376
31 12 6 777 850 - 31126777850 - 6 777 850 - 6777850
31 12 6 757 623 - 31126757623 - 6 757 623 - 6757623
31 12 6 757 622 - 31126757622 - 6 757 622 - 6757622
31 12 6 783 375 - 31126783375 - 6 783 375 - 6783375
31 12 6 777 849 - 31126777849 - 6 777 849 - 6777849

Series / Chassis

E46 / E85 / E86

Models

316Ci / 316i / 316ti / 318Ci / 318d / 318i / 318td / 318ti / 320Cd / 320Ci / 320d / 320i / 320td / 323Ci / 323i / 325Ci / 325i / 325ti / 328Ci / 328i / 330Cd / 330Ci / 330d / 330i / Z4

Engines

M43 / M47 / M47N / M52 / M54 / M56 / M57 / M57N / N40 / N42 / N45 / N46 / N52

To fit the following vehicles

G20 B58D M340i Saloon
G29 B58C Z4 M40i Roadster
G29 B58D Z4 M40i Roadster

Aftermarket Comparison Numbers

3RG - 50101
A.B.S. - 270331
BENDIX - 043129B
BOGE - 87-849-A
CAUTEX - 200543
CORTECO - 80001278
DEEZA - BW-R204
FAI AutoParts - SS4589
FEBI BILSTEIN - 18686
FORTUNE LINE - FZ9021
HUTCHINSON - 590015
JP GROUP - 1440201770
KAWE - FL4170-J
KRAFT AUTOMOTIVE - 4242580
LEMFÖRDER - 17978 01 - 1797801
LEMFÖRDER - 17978 03 - 1797803
MAPCO - 33933
MAPCO - 33933/2
MASTER-SPORT - 17978-PCS-MS
MAXGEAR - 72-0535
MAXGEAR - 72-1367
MAXGEAR - 72-2116
METZGER - 52007712
METZGER - 52007811
MEYLE - 300 311 2604/HD - 3003112604/HD
MEYLE - 300 311 2919/HD - 3003112919/HD
MONROE - L11829
MONROE - L11844
MOOG - BM-SB-2202
NK - 5101513
OPTIMAL - G8-544
PEX - 12.09.087
QUINTON HAZELL - QSK240S
RUVILLE - 985019S
sbs - 19125101513
SIDEM - 821628
SPIDAN - 411141
SWAG - 20 60 0009 - 20600009
TOPRAN - 500 192 - 500192
TRISCAN - 8500 11829 - 850011829
TRISCAN - 8500 11844 - 850011844
TRUCKTEC AUTOMOTIVE - 08.31.041
TRW - JBU656
VAICO - V20-1555
VAICO - V20-7069
JP GROUP - 1440201610
LUO'S - 751302
MAPCO - 36660
OCAP - 901389
ORIGINAL IMPERIUM - 35406
A.B.S. - 290013
