Darkside Front Mounted Engine Oil Cooler Kit for CJAA / CBEA US Spec Engines

Front Mounted Engine Oil Cooler Kit for CJAA / CBEA 2.0 CR TDI US Spec Engines

Oil Coolers are an important addition to high performance engines. Engine Oil can easily overheat causing it to becomes thinner and offer less protection to vital engine parts, resulting in premature engine wear. This is especially a concern on the PD Engines, known for excessive camshaft wear

This is a Universal Kit to be mounted where suitable. It needs to be fitted in a position where airflow can easily pass through, such as the front of the car by the radiator or fog lights. The Universal brackets can be cut or bent to allow fitment in the correct place

The Sandwich Plates are designed to fit between the Oil Filter Housing and the Oil / Coolant Heat Exchanger using the Union Adapter provided. This means you can retain the Heat Exchanger that accelerates the time it takes the coolant to reach optimum temperature (90 Degrees). On the plate there are also 2x 1/8 NPT ports than come blanked off as default however these can be used for oil temperature or pressure sensors.

The Thermostatic Sandwich Plate stays closed until the oil is up to temperature, keeping the oil away from the Cooler Circuit, this will heat it up faster and then maintain a constant temperature.

The Non-Thermostatic is more for track / race use or hot climates where the engine heats up quickly without the need to keep the circuit closed

OIL COOLER SPECIFICATIONS:

10 ROW - Max Pressure 10 BAR (145psi) - W (Overall) - 330mm / W (Core) - 257mm x H - 75mm x D - 50mm
13 ROW - Max Pressure 10 BAR (145psi) - W (Overall) - 330mm / W (Core) - 257mm x H - 100mm x D - 50mm

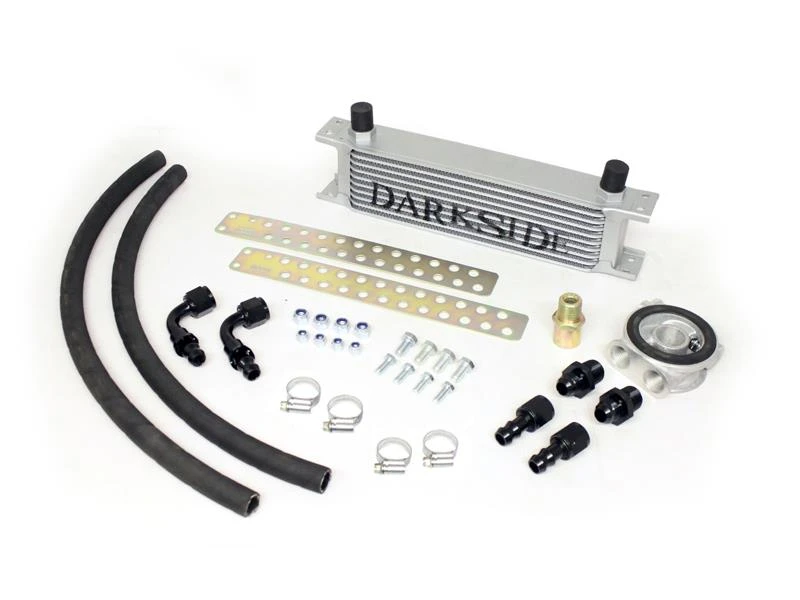

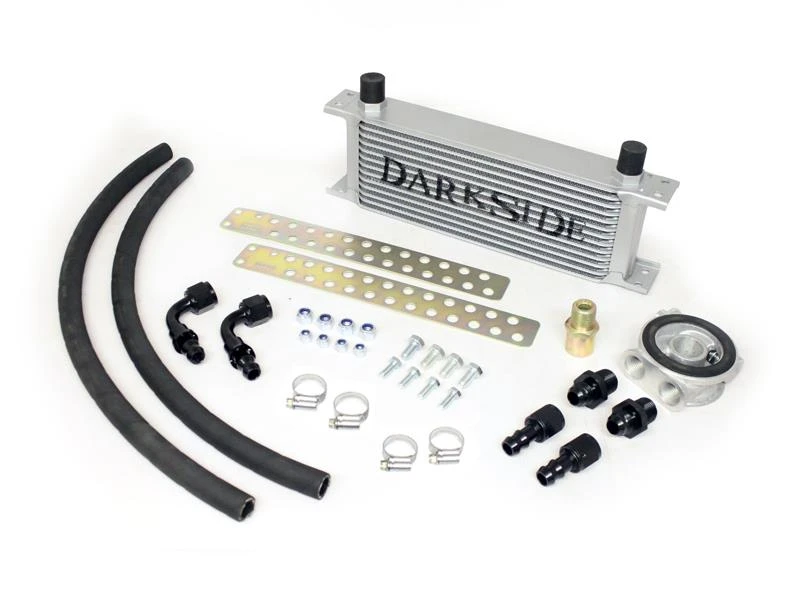

This Kit Consists of:

Oil Cooler - 10, 13 or 19 Row
Sandwich Plate (Thermostatic OR Non-Thermostatic)
Union Adapter
4x Straight Connectors
4x 90 Push Fit Connectors
4x 1m Push Fit Hose
Universal Bracket Kit
Heat Exchanger O-Ring Seal

This Kit will fit the following Vehicles:

Audi A3 / S3 - CBEA (140)

VW Beetle - CJAA (140)

VW Beetle Cabrio - CJAA (140)

VW Bora - CBEA (140) CJAA (140)

VW Golf - CJAA (140)

VW Golf Variant - CJAA (140)

VW Jetta - CBEA (140) CJAA (140)

VW Jetta Variant - CBEA (140) CJAA (140)

VW Novo Fusca - CJAA (140)

VW Vento - CBEA (140) CJAA (140)

VW Vento Variant - CBEA (140) CJAA (140)

Compatible with VW Heat Exchanger Part Numbers:

038117021A - 038117021 A - 038 117 021 A
038117021B - 038117021 B - 038 117 021 B
038117021C - 038117021 C - 038 117 021 C
038117021D - 038117021 D - 038 117 021 D
038117021E - 038117021 E - 038 117 021 E

Compatible with VW Oil Filter Housing Part Numbers:

045115389 - 045 115 389
045115389A - 045115389 A - 045 115 389 A
045115389C - 045115389 C - 045 115 389 C
045115389E - 045115389 E - 045 115 389 E
045115389G - 045115389 G - 045 115 389 G
045115389H - 045115389 H - 045 115 389 H
045115389J - 045115389 J - 045 115 389 J
045115389K - 045115389 K - 045 115 389 K
